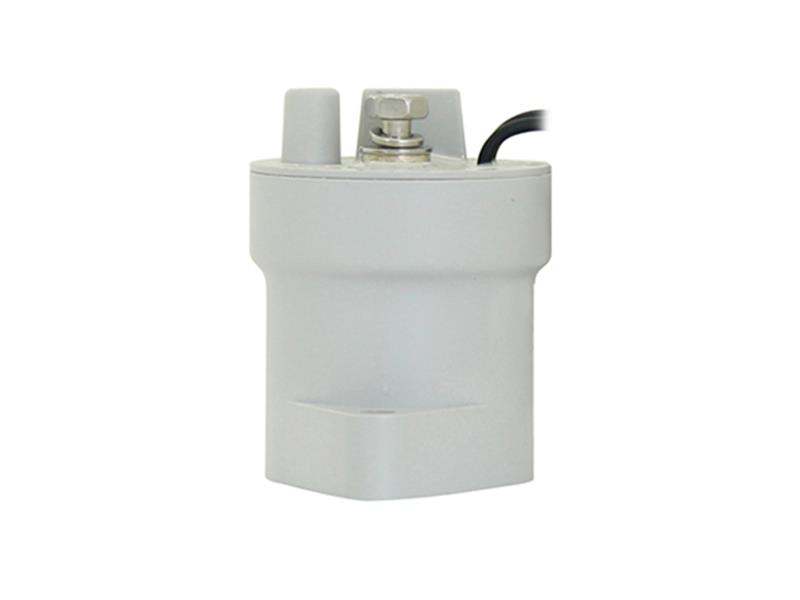

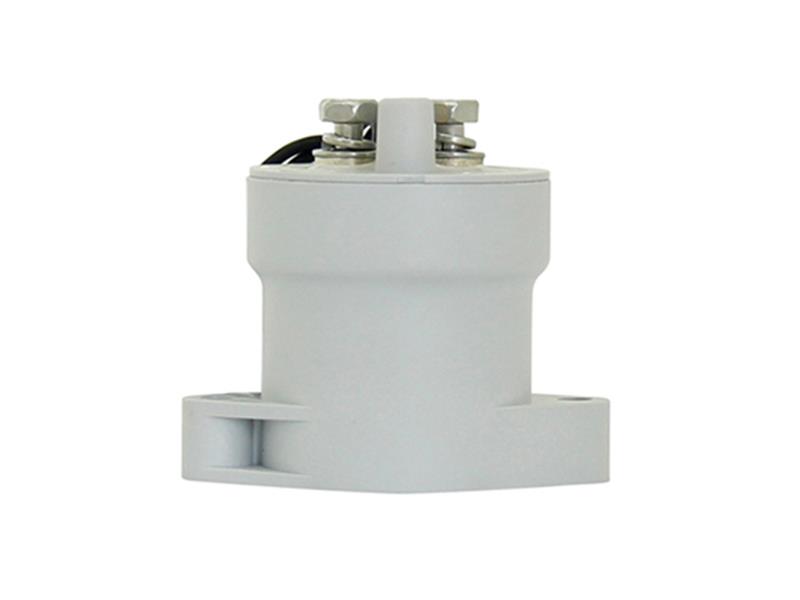

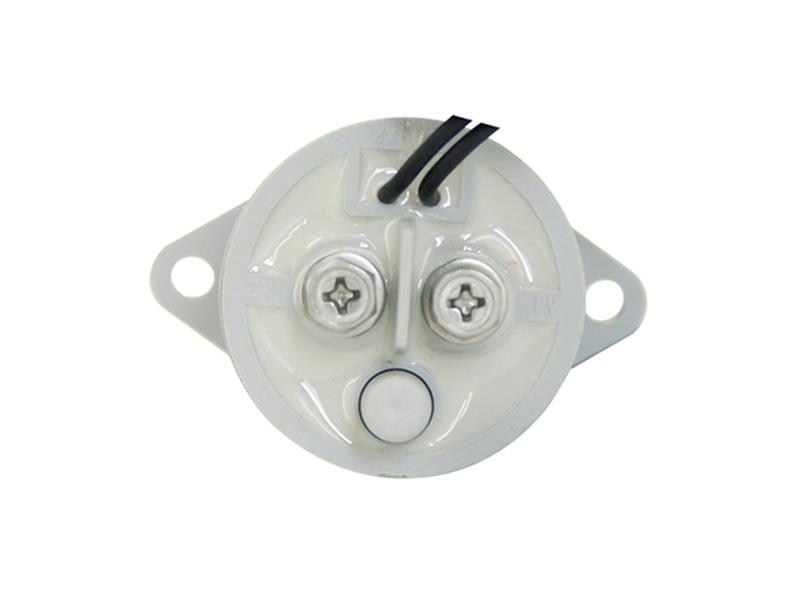

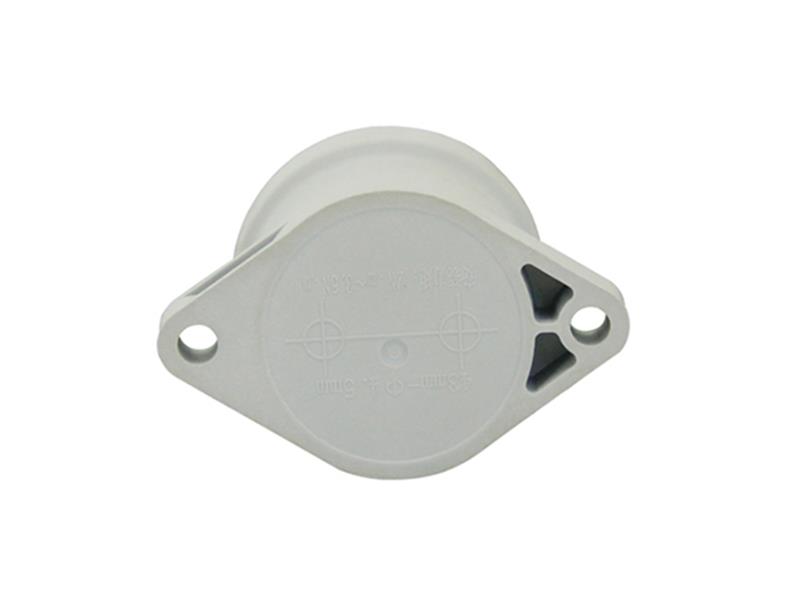

ADH30 Epoxy Sealed SPST NO High Voltage DC Contactor Relay

Theory: Electromagnetic Relay
Usage: General Purpose
Protect Feature: Epoxy Sealed
Contact Load: High Power
Coil Voltage: 12-1000V
Rated Current: 30A
Contact Form: SPST-NO
IP Protect Level: IP67
Size: 51.7mmx36mmx46mm
Mechanical Life: 300,000 Ops
Electric Life: 9,000 Ops (Resistive 30A, 450VDC)
Quality Control: ISO9001, IATF16949
Brand & Logo: AK

1. Introduction
This series DC Relay Contactor is used to DC voltage power control fields, such as new energy vehicles, construction machinery, photovoltaic systems, wind power intelligent equipment, battery charging and discharging systems, charging piles, etc.

2. Features
• Sealed with high-strength epoxy resin, no risk of arc leakage, ensuring no fire or explosion within the service life.
• Potting with mainly nitrogen inert gas improves arc extinguishing performance and effectively prevents contact oxidation and burnout. The contact resistance is low and stable, and the contact part can meet the IP67 protection grade.
• 30A 85ºC long time current carrying capacity.
• The insulation resistance reaches 100MΩ (1,000VDC), and the withstand voltage between the contact and the coil is 3.5kV.
• Compliant with IEC 60664-1, GB/T14048.1 and GB/T14048.4 requirements.
• Compliant with RoHS (2015/863/EU), REACH (1907/2006/EC) requirements.
• Safety certificate: CE, CCC.

3. Specification

Main Contact Specifications

Contact Arrangement

1K (1NO)

Contact Polarity

Non-polarity

Contact Resistance

≤0.5mΩ (at 30A)

Max. Switching Voltage

1,000VDC

Max. Breaking Current

240A (320VDC) 1 Ops

Electrical Endurance (Resistive Load)

1,000 Ops (1,000VDC, 30A)

3,000 Ops (750VDC, 30A)

9,000 Ops (450VDC, 30A)

Mechanical Endurance

300,000 Ops

Withstand Current

30A, Continuous

45A, 60min

60A, 5min

120A, 30s



Performance Parameters (at 23℃)

Pickup Voltage

≤70% Us

Dropout Voltage

<40%Us, >5%Us

Pickup Time

≤25ms

Contact Bounce Period

≤5ms

Dropout Time

≤10ms

Dielectric Strength

Between Main Contacts

3,500VDC 1min

Between Main Contacts and Coil

3,500VDC 1min

Insulation

Resistance

Initial State

100MΩ 1min

After Electrical Life

50MΩ 1min

Shock

Stability

20g (Power On)

Strength

50g

Vibration

10g, 10~500Hz, 1/2 Sine Wave (Power On)

Relative Humidity

5%~95%RH

Temperature

-40℃~85℃

Load Terminal

M4 Internal Thread

Weight

About 100g

Dimension

51.7mmx36mmx46mm



Auxiliary Contact Parameters

Aux. Contact Arrangement

/

Aux. Contact Rated Current

/

Aux. Contact Max. Breaking Voltage

/



ADH30S Coil Parameters

Coil Voltage

Pickup Voltage VDC

Dropout Voltage VDC

Coil Resistance

Coil Power Consumption

12V

≤70%Us

5%-40%Us

36Ω±5%

4W±10%

24V

≤70%Us

5%-40%Us

144Ω±5%

4W±10%

36V

≤70%Us

5%-40%Us

324Ω±5%

4W±10%

48V

≤70%Us

5%-40%Us

576Ω±5%

4W±10%

60V

≤70%Us

5%-40%Us

900Ω±5%

4W±10%

72V

≤70%Us

5%-40%Us

1,296Ω±5%

4W±10%

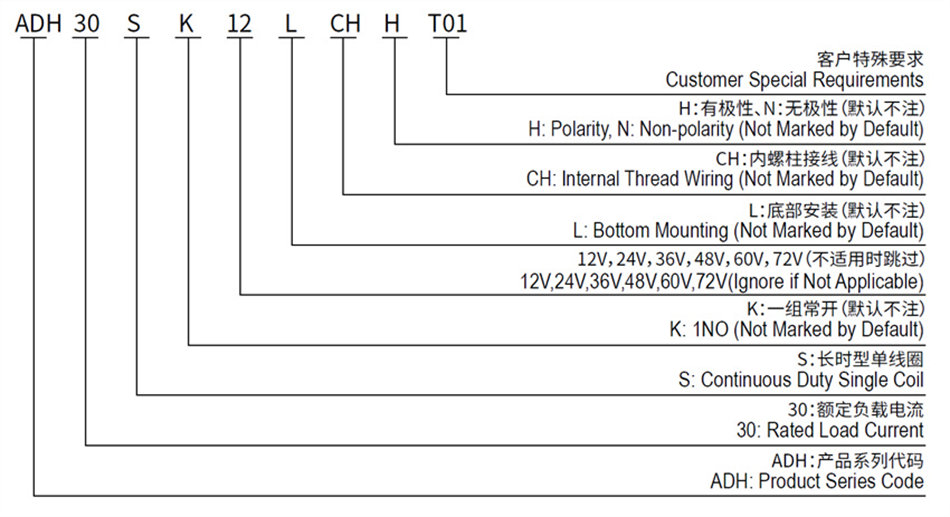

4. Model Coding

Epoxy Sealed SPST NO High Voltage DC Contactor Relay

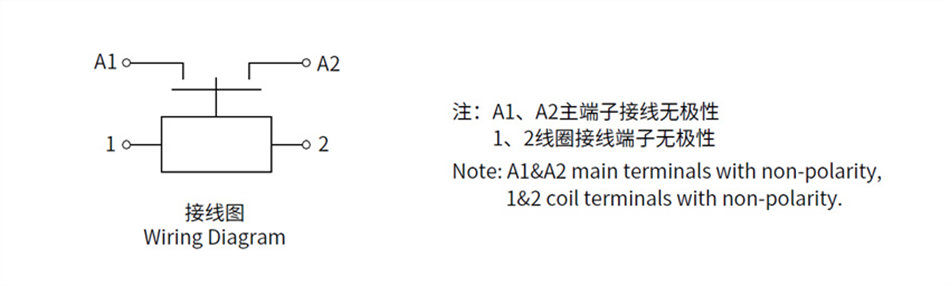

5. Wiring Diagram

Epoxy Sealed SPST NO High Voltage DC Contactor Relay

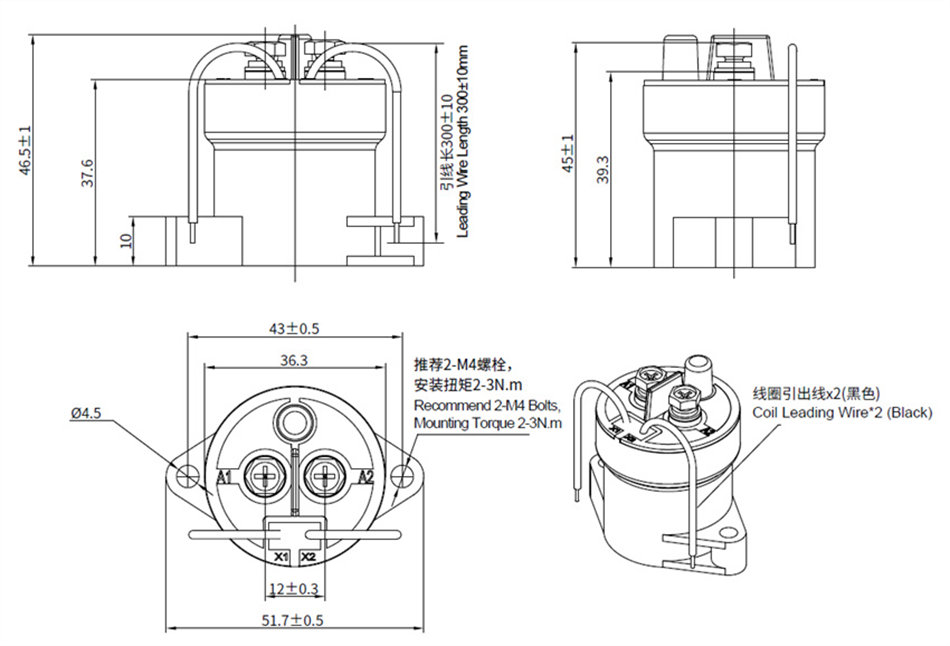

6. Outline Installation Dimension Drawing

Epoxy Sealed SPST NO High Voltage DC Contactor Relay

Note: These datas are only for customer selection reference, AOKAI has tried the best to ensure the accuracy of the information. Product specifications and parameters may be changed due to product improvement etc., they may be inconsistent because of not updated in time. For the specific parameters and performance of each product, please refer to the samples provided by AOKAI and the corresponding signed and controlled specification.
