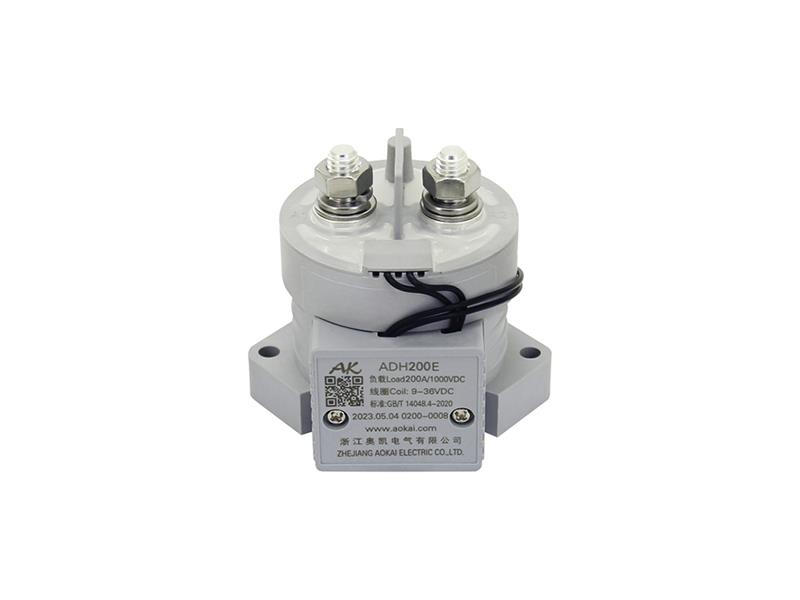

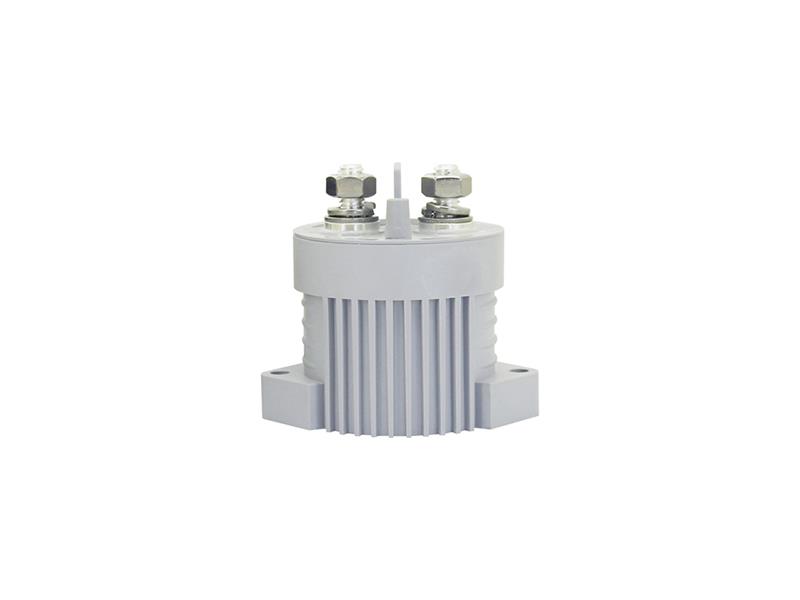

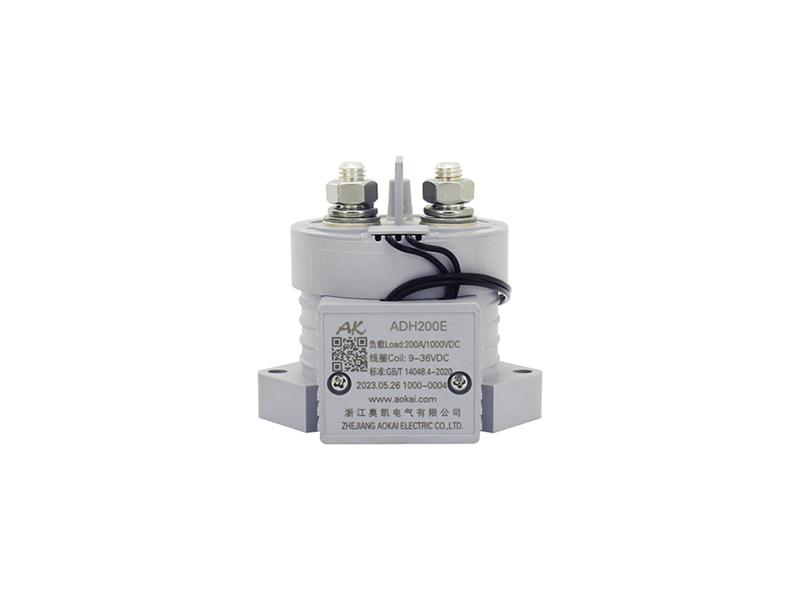

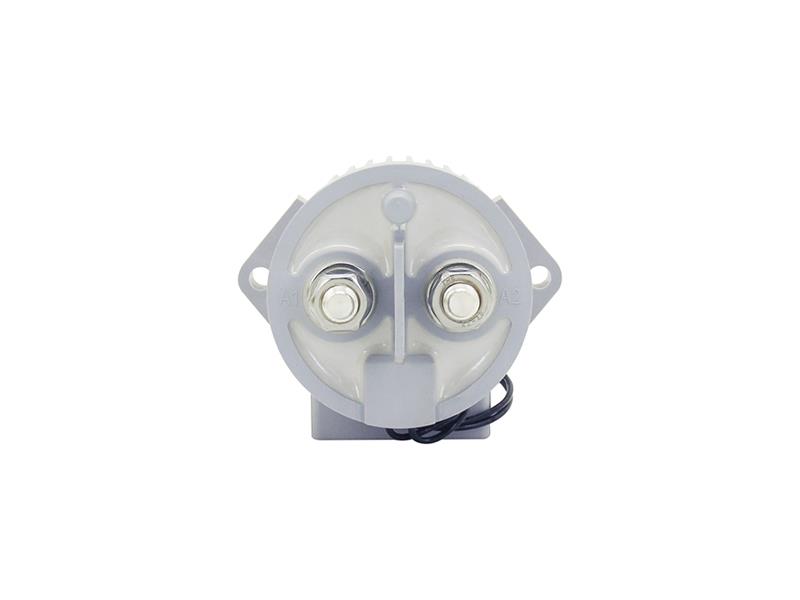

200A 1000V ADH200E Energy Saving SPST NO Epoxy High Voltage DC Contactor Relay

Theory: Electromagnetic Relay
Usage: General Purpose
Protect Feature: Epoxy Sealed
Contact Load: High Power
Coil Voltage: 12-1000V
Rated Current: 200A
Contact Form: SPST-NO
IP Protect Level: IP67
Size: 80mmx65.5mmx72.5mm
Mechanical Life: 300,000 Ops
Electric Life: 15,000 Ops (Resistive 200A, 500VDC)
Quality Control: ISO9001, IATF16949
Brand & Logo: AK

1. Introduction
This series DC Contactor Relay is used to DC voltage power control fields, such as new energy vehicles, construction machinery, photovoltaic systems, wind power intelligent equipment, battery charging and discharging systems, charging piles, etc.

2. Features
• Sealed with high-strength epoxy resin, no risk of arc leakage, ensuring no fire or explosion within the service life.
• Potting with mainly nitrogen inert gas improves arc extinguishing performance and effectively prevents contact oxidation and burnout. The contact resistance is low and stable, and the contact part can meet the IP67 protection grade.
• 200A 85ºC long time current carrying capacity.
• The insulation resistance reaches 100MΩ (1,000VDC), and the withstand voltage between the contact and the coil is 3.5kV.
• Compliant with IEC 60664-1, GB/T14048.1 and GB/T14048.4 requirements.
• Compliant with RoHS (2015/863/EU), REACH (1907/2006/EC) requirements.
• Safety certificate: CE, CCC.

3. Specification

Main Contact Specifications

Contact Arrangement

1K (1NO)

Contact Polarity

Non-polarity

Contact Resistance

≤0.5mΩ (at 200A)

Max. Switching Voltage

1,000VDC

Max. Breaking Current

2,000A (320VDC) 1 Ops

Electrical Endurance (Resistive Load)

5,000 Ops (1,000VDC, 200A)

10,000 Ops (750VDC, 200A)

15,000 Ops (500VDC, 200A)

Mechanical Endurance

300,000 Ops

Withstand Current

200A, Continuous

400A, 60min

500A, 5min

600A, 1min

Temperature Rise

Main Contact Temperature Rise ≤45K (50mm2, 200A Continuous)



Performance Parameters (at 23℃)

Pickup Voltage

See Coil Parameter Tables

Dropout Voltage

See Coil Parameter Tables

Pickup Time

≤25ms

Contact Bounce Period

≤5ms

Dropout Time

≤10ms

Dielectric Strength

Between Main Contacts

12,000VDC 1min

Between Main Contacts and Coil

3,500VDC 1min

Insulation

Resistance

Initial State

100MΩ 1min

After Electrical Life

50MΩ 1min

Shock

Stability

20g (Power On)

Strength

50g

Vibration

10g, 10~500Hz, 1/2 Sine Wave (Power On)

Relative Humidity

5%~95%RH

Temperature

-40℃~85℃

Load Terminal

M8 External Thread

Weight

About 480g

Dimension

80mmx65.5mmx72.5mm



Auxiliary Contact Parameters

Aux. Contact Arrangement

FK/FB/FZ (1NO/1NC/1CO)

Aux. Contact Rated Current

5A

Aux. Contact Max. Breaking Voltage

120VDC



ADH200E Coil Parameters

Coil Voltage

Pickup Voltage VDC

Dropout Voltage
VDC

Coil Resistance

Starting Power

Holding Power

9-36V

9-36V

5-7V

3.5Ω±10%

25W±10%
(<100ms)

2W±10%



ADH200W Coil Parameters

Coil Voltage

Pickup Voltage VDC

Dropout Voltage
VDC

Coil Resistance

Starting Power

Holding Power

32-96V

32-96V

16-20V

40.5Ω±10%

25W±10%
(<100ms)

2W±10%



ADH200D Coil Parameters

Coil Voltage

Pickup Voltage
VDC

Dropout Voltage
VDC

Coil Resistance

Starting Power

Holding Power

Starting

Holding

12V

≤70%Us

5%-40%Us

2.5Ω±10%

48Ω±10%

60W±10%

3W±10%

24V

≤70%Us

5%-40%Us

10Ω±10%

190Ω±10%

60W±10%

3W±10%

48V

≤70%Us

5%-40%Us

40Ω±10%

768Ω±10%

60W±10%

3W±10%

60V

≤70%Us

5%-40%Us

62.5Ω±10%

1,200Ω±10%

60W±10%

3W±10%

72V

≤70%Us

5%-40%Us

90Ω±10%

1,730Ω±10%

60W±10%

3W±10%



ADH200DE Coil Parameters

Coil Voltage

Pickup Voltage
VDC

Dropout Voltage
VDC

Coil Resistance

Starting Power

Holding Power

Starting

Holding

12V

≤70%Us

5%-40%Us

2.5Ω±10%

48Ω±10%

60W±10%

3W±10%

24V

≤70%Us

5%-40%Us

10Ω±10%

190Ω±10%

60W±10%

3W±10%

48V

≤70%Us

5%-40%Us

40Ω±10%

768Ω±10%

60W±10%

3W±10%

60V

≤70%Us

5%-40%Us

62.5Ω±10%

1,200Ω±10%

60W±10%

3W±10%

72V

≤70%Us

5%-40%Us

90Ω±10%

1,730Ω±10%

60W±10%

3W±10%

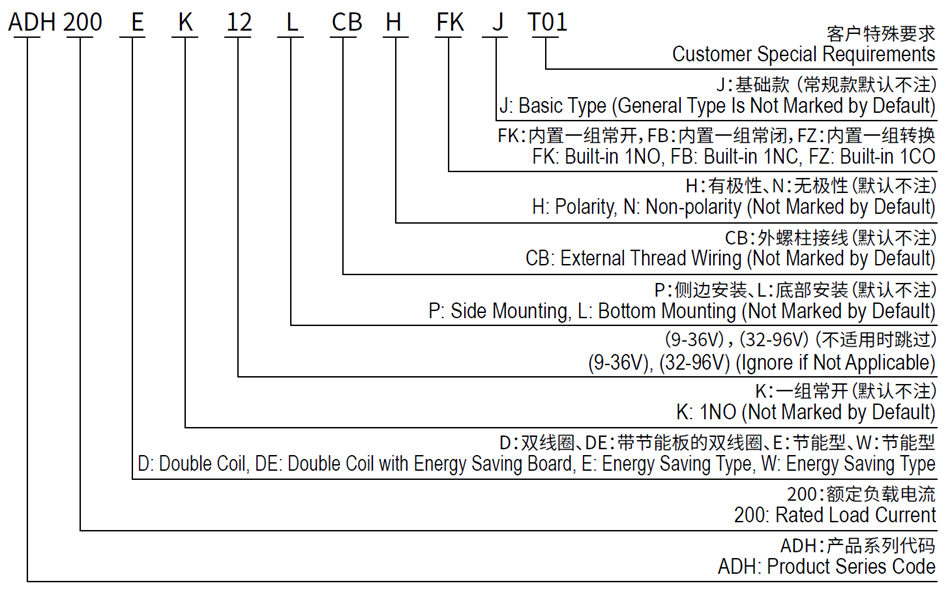

4. Model Coding

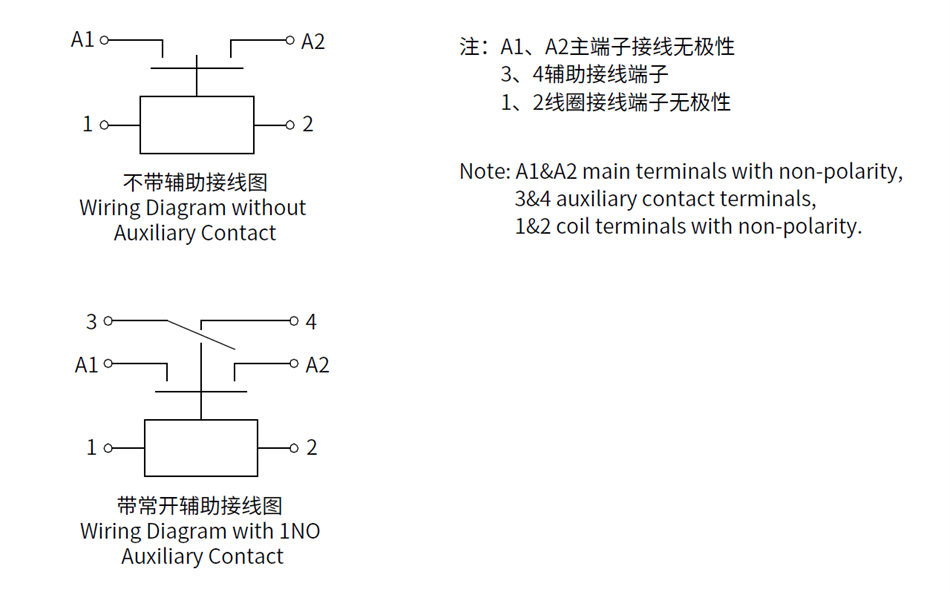

5. Wiring Diagram

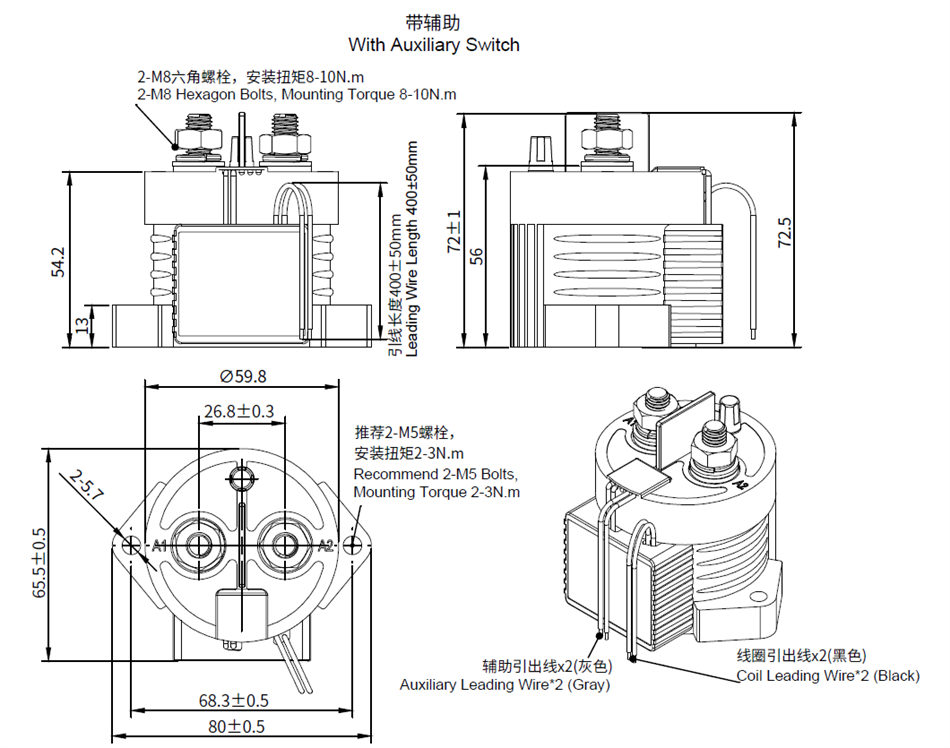

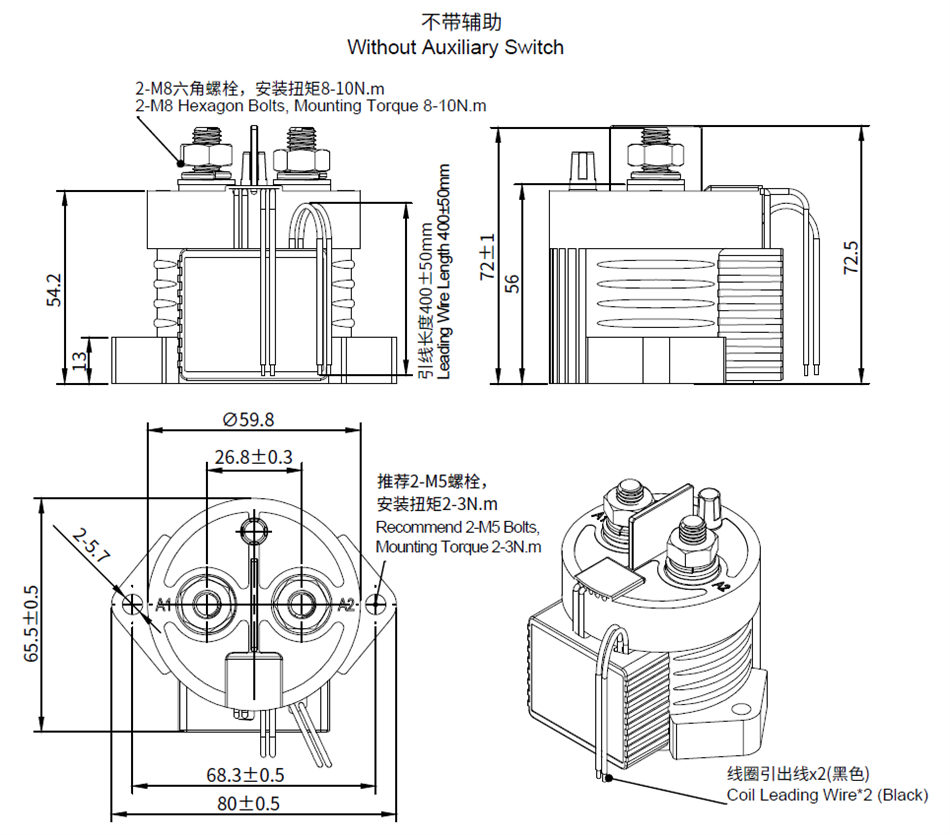

6. Outline Installation Dimension Drawing

Note: These datas are only for customer selection reference, AOKAI has tried the best to ensure the accuracy of the information. Product specifications and parameters may be changed due to product improvement etc., they may be inconsistent because of not updated in time. For the specific parameters and performance of each product, please refer to the samples provided by AOKAI and the corresponding signed and controlled specification.
