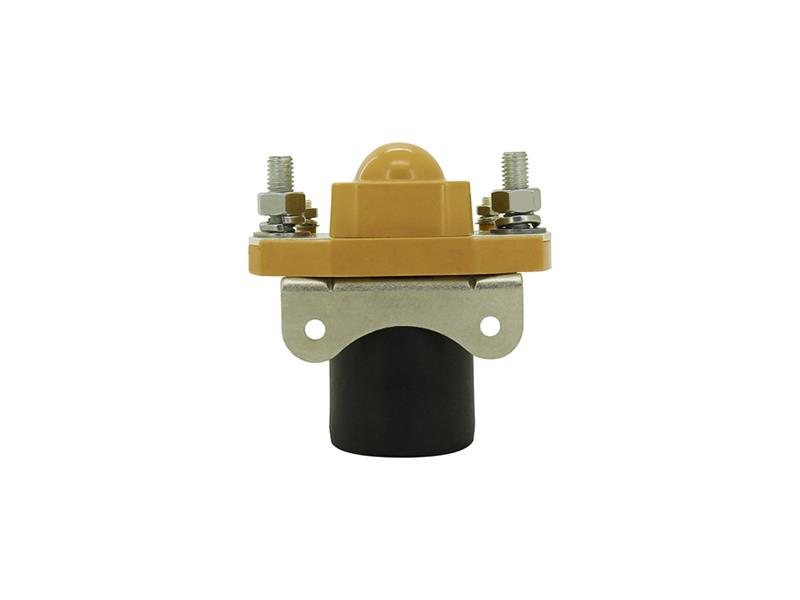

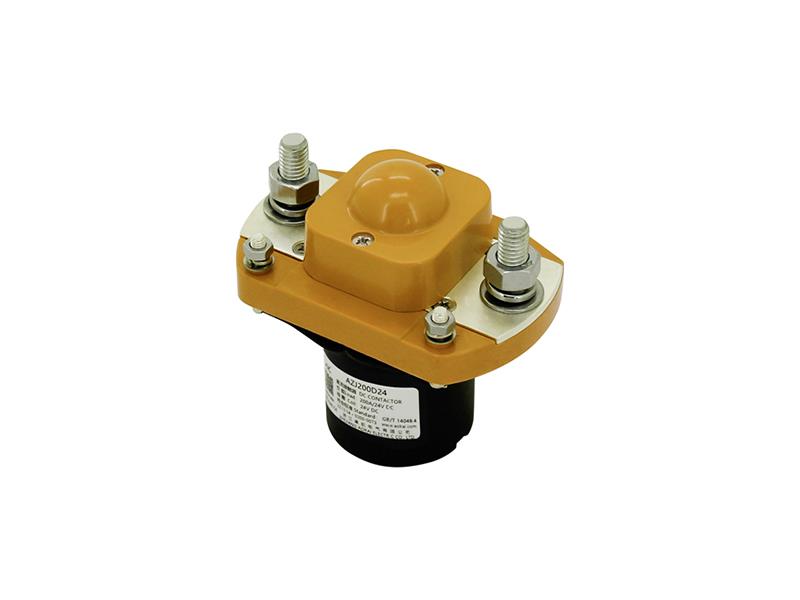

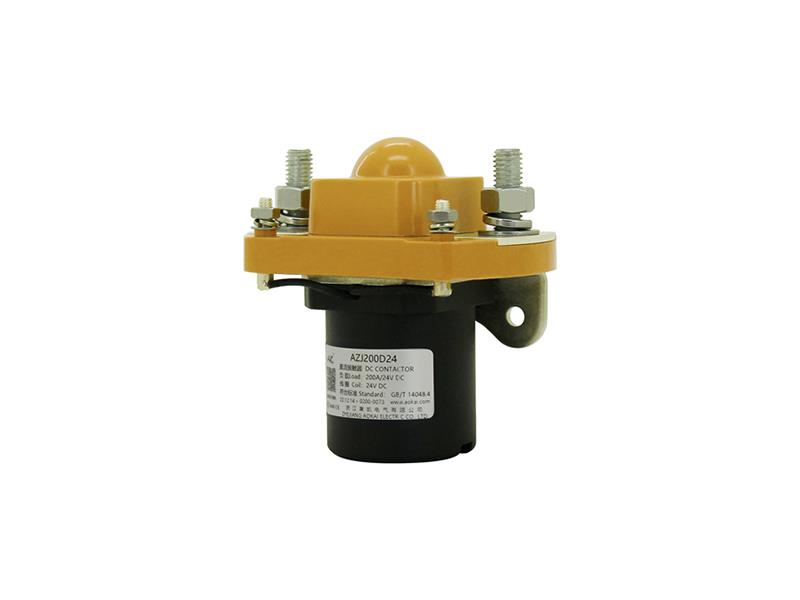

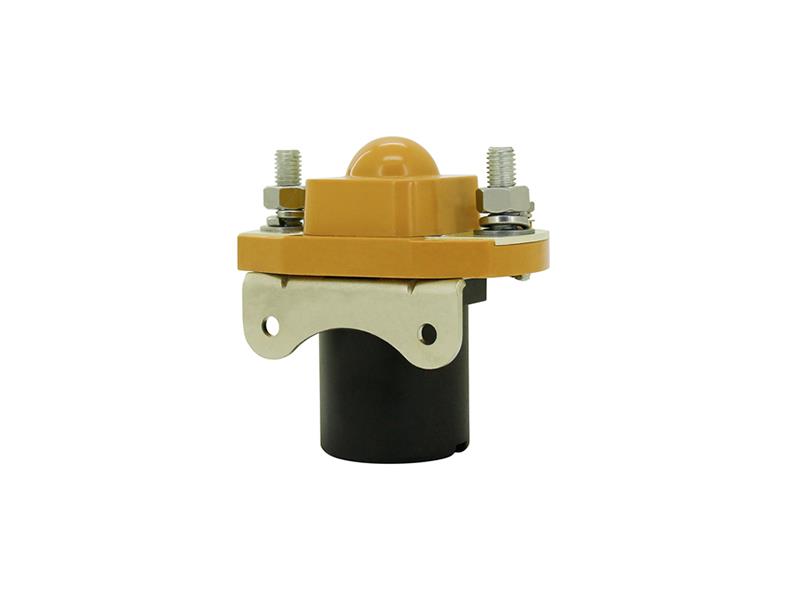

200A Double Coil AZJ200D SPST NO DC Contactor for Forkllift

Theory: Electromagnetic Contactor
Usage: General Purpose
IP Protect Level: IP50
Rated Current: Continuous 200A
Contact Form: SPST-NO
Size: 85mmx56mmx86mm
Mechanical Life: 100,000 Ops
Electric Life: 20,000 Ops
Quality Control: ISO9001, IATF16949
Brand & Logo: AK

1. Introduction
This series DC Contactor is used in electrical control systems, such as communication power supply equipment, frequency converters, engineering machinery, electromobiles, electric forklifts, automobiles, trains, ships, uninterruptible power supplies, etc.

2. Features
• Continuous 200A load.
• It has one set of normally open contact.
• Coil power consumption ≤9W.
• The insulation resistance is up to 100MΩ (1,000VDC), the withstand voltage between the contact and the coil is 3.5kV.
• IP protection level: IP50.
• Compliant with IEC 60664-1, GB/T14048.1 and GB/T14048.4 requirements.
• Compliant with RoHS (2015/863/EU), REACH (1907/2006/EC) requirements.
• Safety certificate: CE, CCC.

3. Specification

Performance Parameters (at 23℃)

Contact Arrangement

1K (1NO)

Contact Resistance

≤0.5mΩ

Contact Voltage Drop

≤80mV (at 200A)

Overload Current

≤7le, ≯1s

Temperature Range

-40℃~85℃

Load Terminal

M8 External Thread

Humidity

5%~95%RH

External Dimension

85mmx56mmx86mm

Operating Duty

Continuous

Electrical Durability with Load (Resistive)

≥20,000 Times

Load Wiring Torque

6-10N.m

Pickup Voltage

≤70% Us

Dropout Voltage

5%-40% Us

Contact Bounce Period

≤5ms

Pickup Time

≤30ms

Dropout Time

≤30ms

Dielectric Strength

Between Main Contacts

50Hz/60Hz 1,500VAC/1min

Between Main Contacts and Coil

50Hz/60Hz 1,500VAC/1min

Insulation

Resistance

Initial State

100MΩ 1min

After Electrical Life

50MΩ 1min

Shock

Stability

2.5g (Power On)

Strength

5g

Vibration

3.5g, 10~200Hz, 1/2 Sine Wave (Power On)

Mechanical Durability

≥100,000 Times

Coil Wiring Torque

1.2-2.0N.m



AZJ200S Coil Parameters

Coil Voltage

Pickup Voltage

Dropout Voltage

Coil Resistance

Coil Power Consumption

12V

≤70%Us

5%-40%Us

16Ω±10%

9W±10%

24V

≤70%Us

5%-40%Us

63Ω±10%

9W±10%

36V

≤70%Us

5%-40%Us

144Ω±10%

9W±10%

48V

≤70%Us

5%-40%Us

256Ω±10%

9W±10%

60V

≤70%Us

5%-40%Us

400Ω±10%

9W±10%

72V

≤70%Us

5%-40%Us

576Ω±10%

9W±10%



AZJ200D Coil Parameters

Coil Voltage

Pickup Voltage

Dropout Voltage

Coil Resistance

Starting Power

Holding Power

Starting

Holding

12V

≤70%Us

5%-40%Us

2Ω±10%

48Ω±10%

72W±10%

4W±10%

24V

≤70%Us

5%-40%Us

7.5Ω±10%

190Ω±10%

75W±10%

4W±10%

36V

≤70%Us

5%-40%Us

17.5Ω±10%

430Ω±10%

75W±10%

4W±10%

48V

≤70%Us

5%-40%Us

31Ω±10%

768Ω±10%

75W±10%

4W±10%

60V

≤70%Us

5%-40%Us

48Ω±10%

1,200Ω±10%

75W±10%

4W±10%

72V

≤70%Us

5%-40%Us

68Ω±10%

1,500Ω±10%

75W±10%

4W±10%

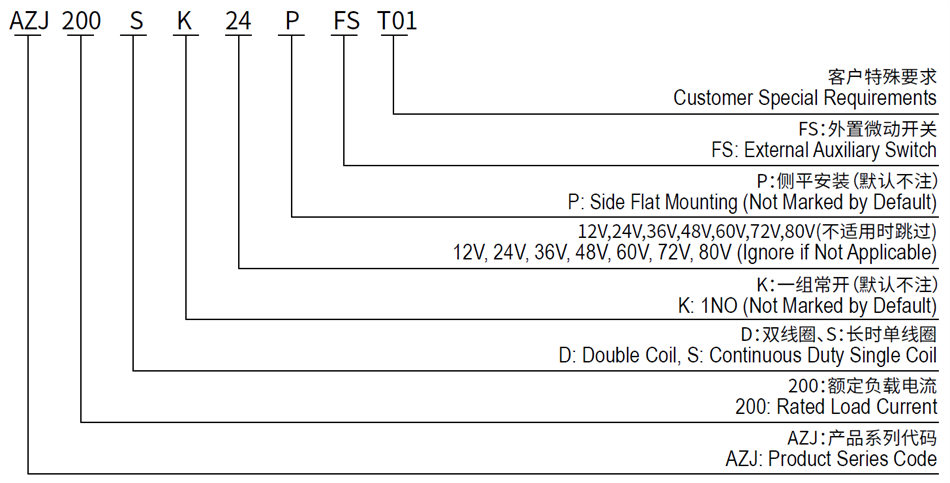

4. Model Coding

Double Coil AZJ200D SPST NO DC Contactor for Forkllift

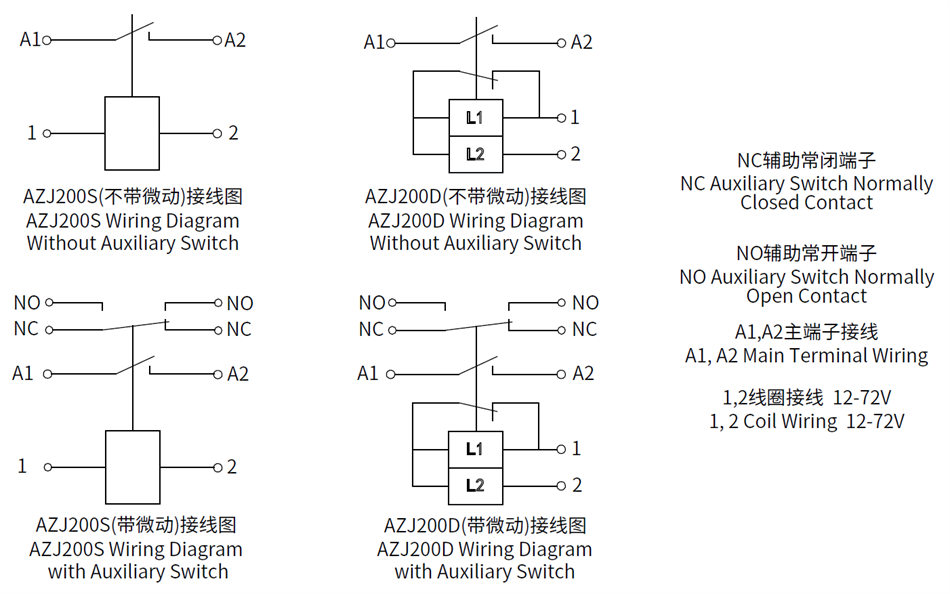

5. Wiring Diagram

Double Coil AZJ200D SPST NO DC Contactor for Forkllift

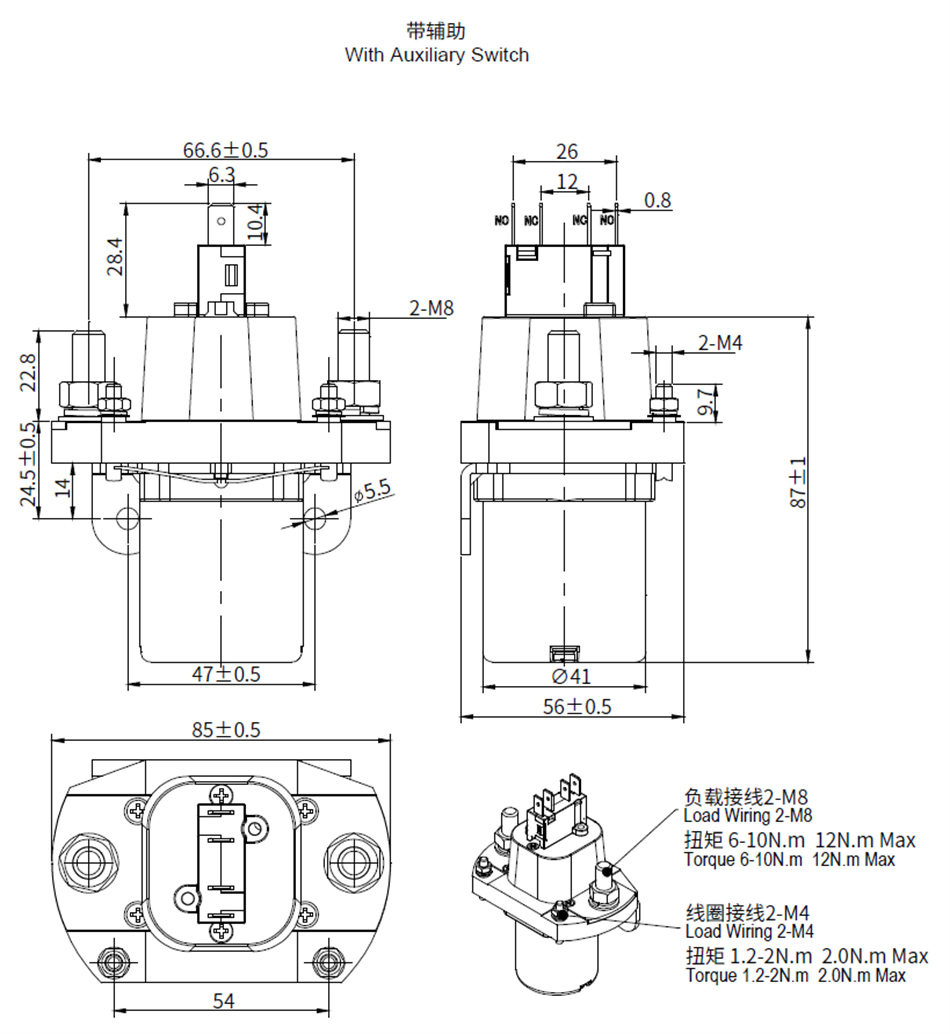

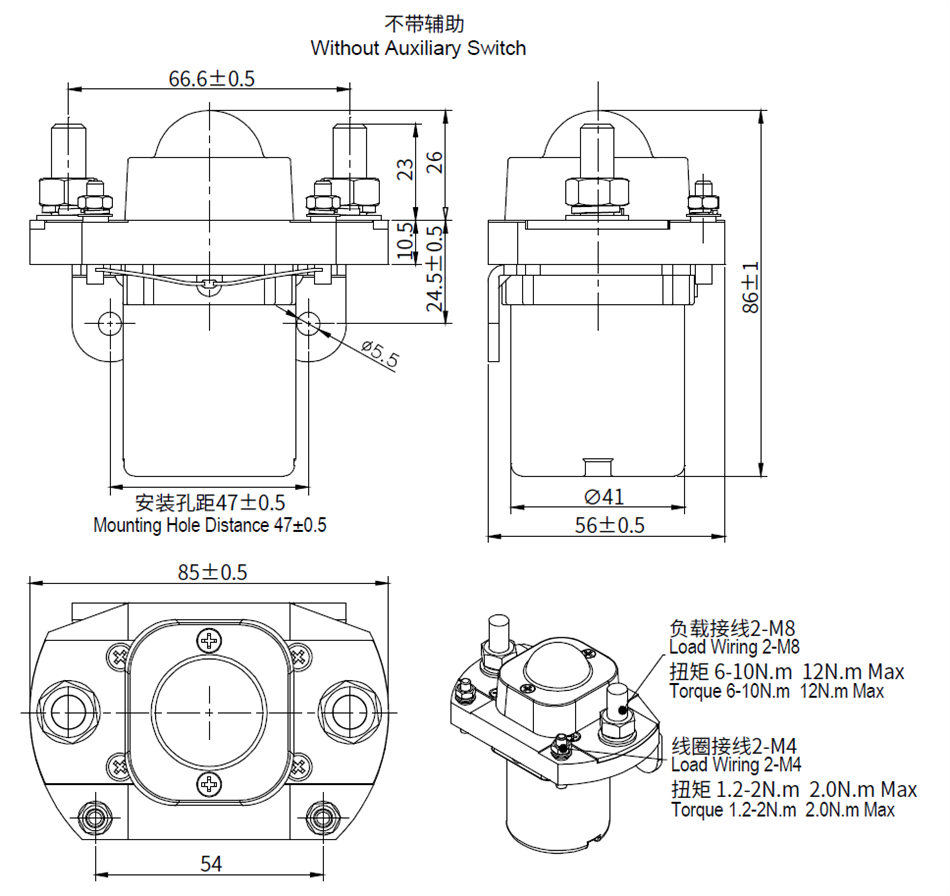

6. Outline Installation Dimension Drawing

Double Coil AZJ200D SPST NO DC Contactor for Forkllift

Double Coil AZJ200D SPST NO DC Contactor for Forkllift

Note: These datas are only for customer selection reference, AOKAI has tried the best to ensure the accuracy of the information. Product specifications and parameters may be changed due to product improvement etc., they may be inconsistent because of not updated in time. For the specific parameters and performance of each product, please refer to the samples provided by AOKAI and the corresponding signed and controlled specification.
