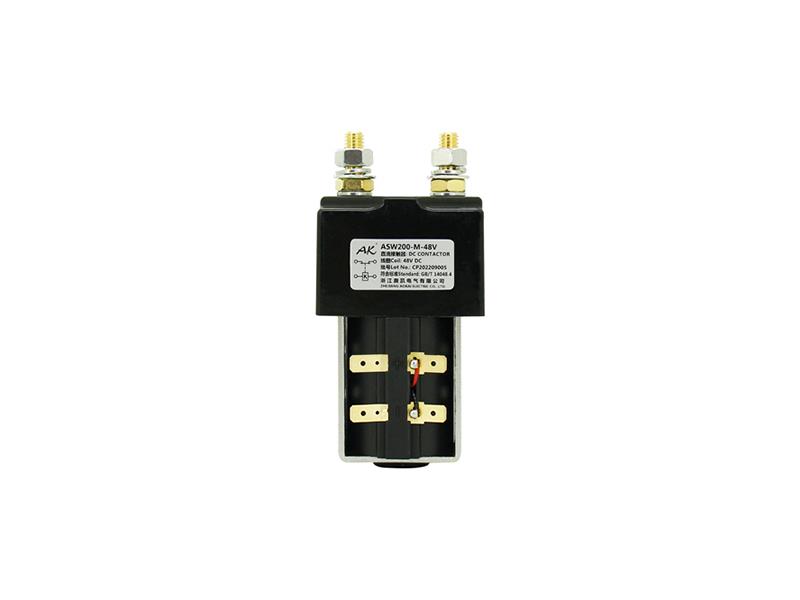

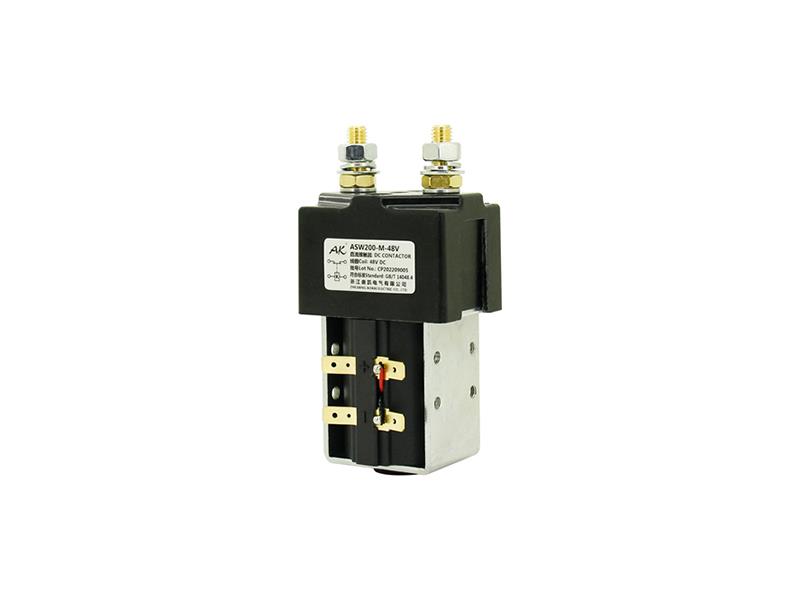

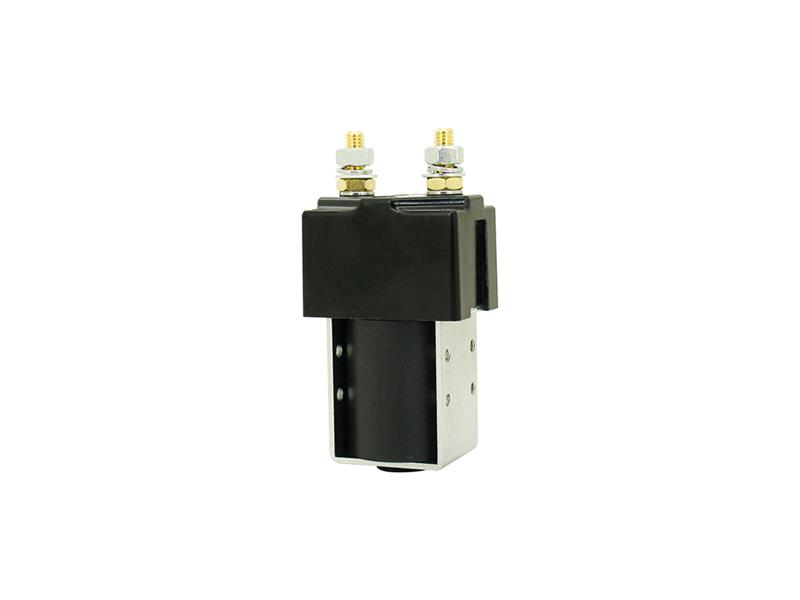

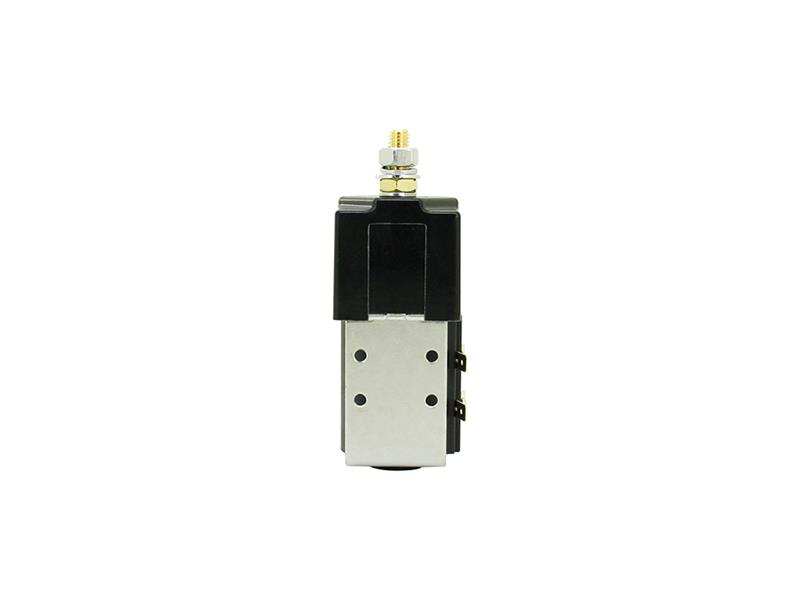

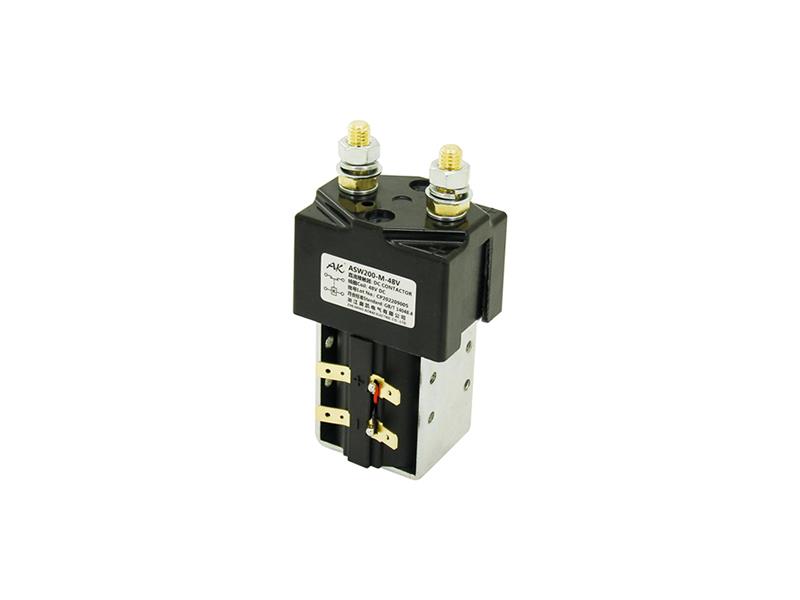

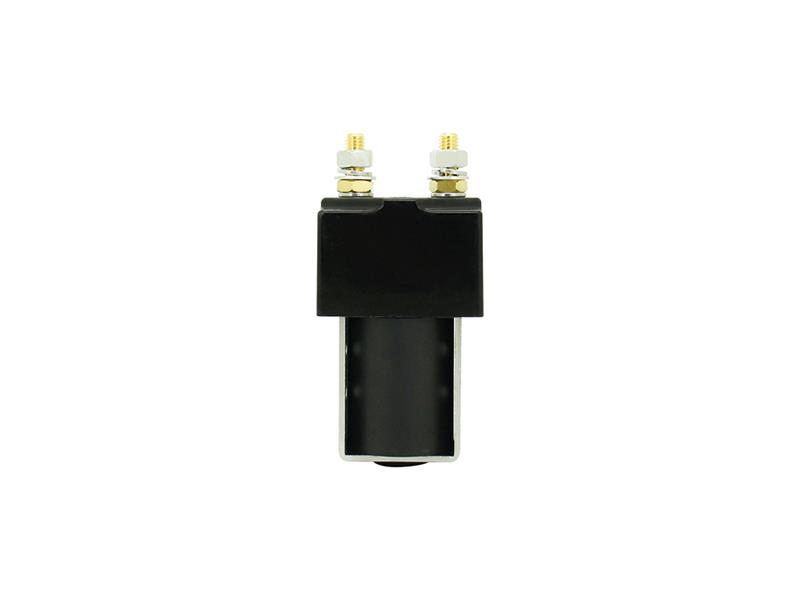

200A ASW200 SPST NO DC Contactor for Electric Forklifts

Theory: Electromagnetic Contactor
Usage: General Purpose
IP Protect Level: IP40
Rated Current: Continuous 200A
Contact Form: SPST-NO
Size: 61mmx48x123mm
Mechanical Life: 100,000 Ops
Electric Life: 6,000 Ops
Quality Control: ISO9001, IATF16949
Brand & Logo: AK

1. Introduction
This series DC Contactor is used in electrical control systems, such as communication power supply equipment, frequency converters, engineering machinery, electromobiles, electric forklifts, automobiles, trains, ships, uninterruptible power supplies, etc.

2. Features
• Continuous 200A load.
• It has one set of normally open contact.
• Coil power consumption ≤20W.
• The insulation resistance is up to 100MΩ (1,000VDC), the withstand voltage between the contact and the coil is 1kV.
• IP protection level: IP40.
• Compliant with IEC 60664-1, GB/T14048.1 and GB/T14048.4 requirements.
• Compliant with RoHS (2015/863/EU), REACH (1907/2006/EC) requirements.
• Safety certificate: CE.

3. Specification

Performance Parameters (at 23℃)

Contact Arrangement

1K (1NO)

Contact Resistance

≤0.5mΩ

Contact Voltage Drop

≤80mV (at 200A)

Overload Current

≤7le, ≯1s

Temperature Range

-25℃~60℃

Load Terminal

M8 External Thread

Humidity

20%~90%RH

External Dimension

61mmx48mmx123mm

Operating Duty

Continuous

Electrical Durability with Load (Resistive)

≥6,000 Times

Load Wiring Torque

8-10N.m

Pickup Voltage

≤70% Us

Dropout Voltage

≥10% Us

Contact Bounce Period

≤5ms

Pull-In Time

≤30ms

Drop-Out Time

≤30ms

Dielectric Strength

Between Main Contacts

50Hz/60Hz 1,000VAC/1min

Between Main Contacts and Coil

50Hz/60Hz 1,000VAC/1min

Insulation

Resistance

Initial State

100MΩ 1min

After Electrical Life

50MΩ 1min

Shock

(60-100) times/min, Acceleration≤4g

Vibration

3.5g, 10~200Hz, 1/2 Sine Wave (Power On)

Mechanical Durability

≥100,000 Times

Coil Wiring

0.8*6.3 Spade Terminal



ASW200S Coil Parameters

Coil Voltage

Pickup Voltage

Dropout Voltage

Holding Current

Coil Power Consumption

12V

≤70%Us

≥10%Us

≤1.20A

10W-20W

24V

≤70%Us

≥10%Us

≤0.60A

36V

≤70%Us

≥10%Us

≤0.40A

48V

≤70%Us

≥10%Us

≤0.30A

60V

≤70%Us

≥10%Us

≤0.25A

72V

≤70%Us

≥10%Us

≤0.20A

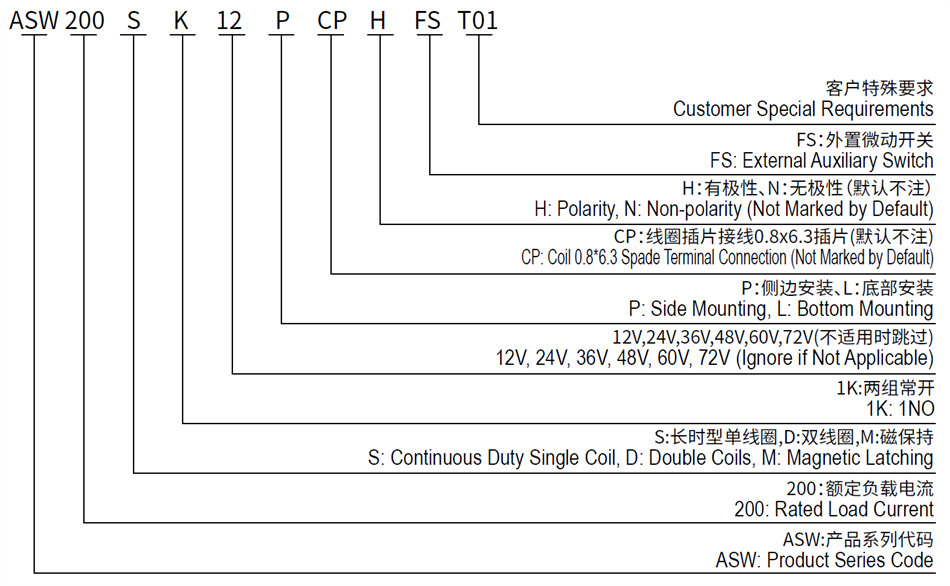

4. Model Coding

ASW200 SPST NO DC Contactor for Electric Forklifts

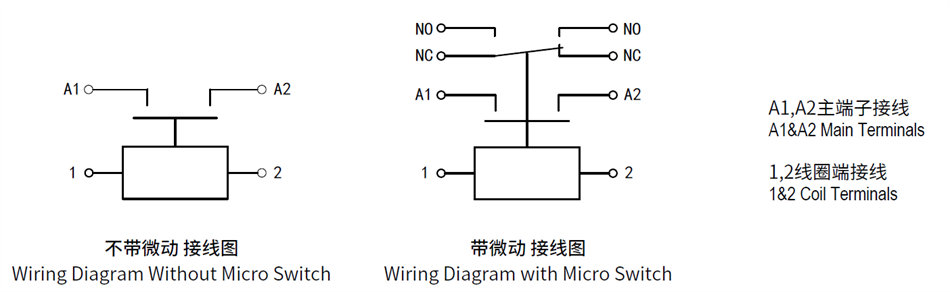

5. Wiring Diagram

ASW200 SPST NO DC Contactor for Electric Forklifts

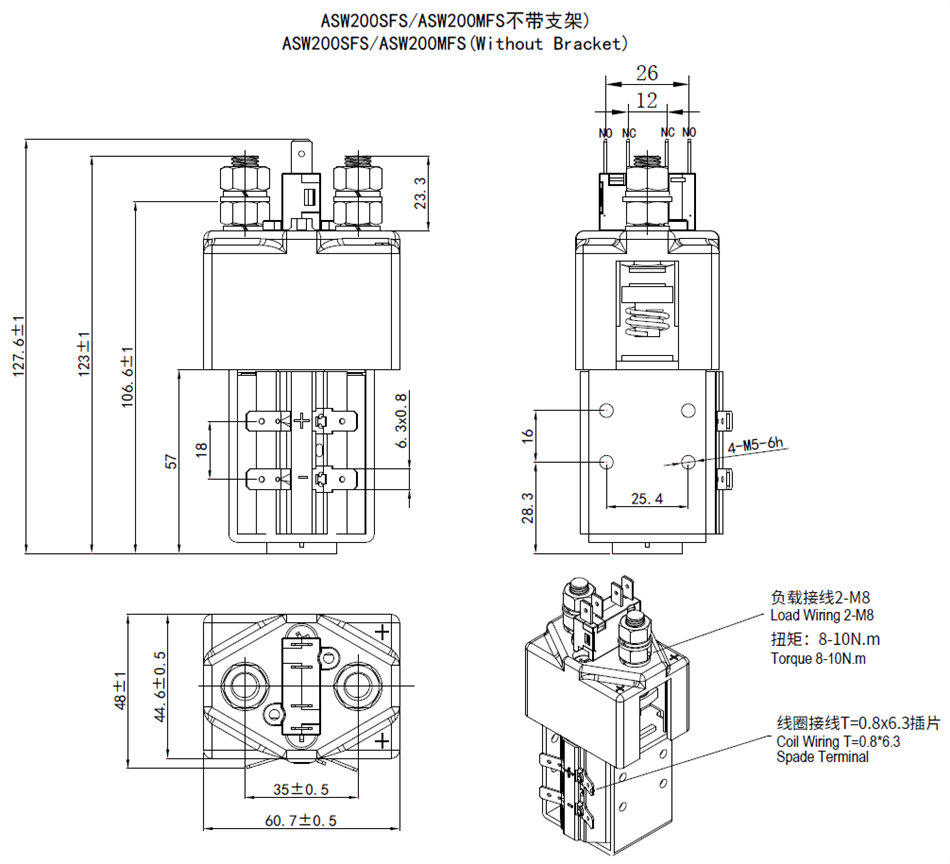

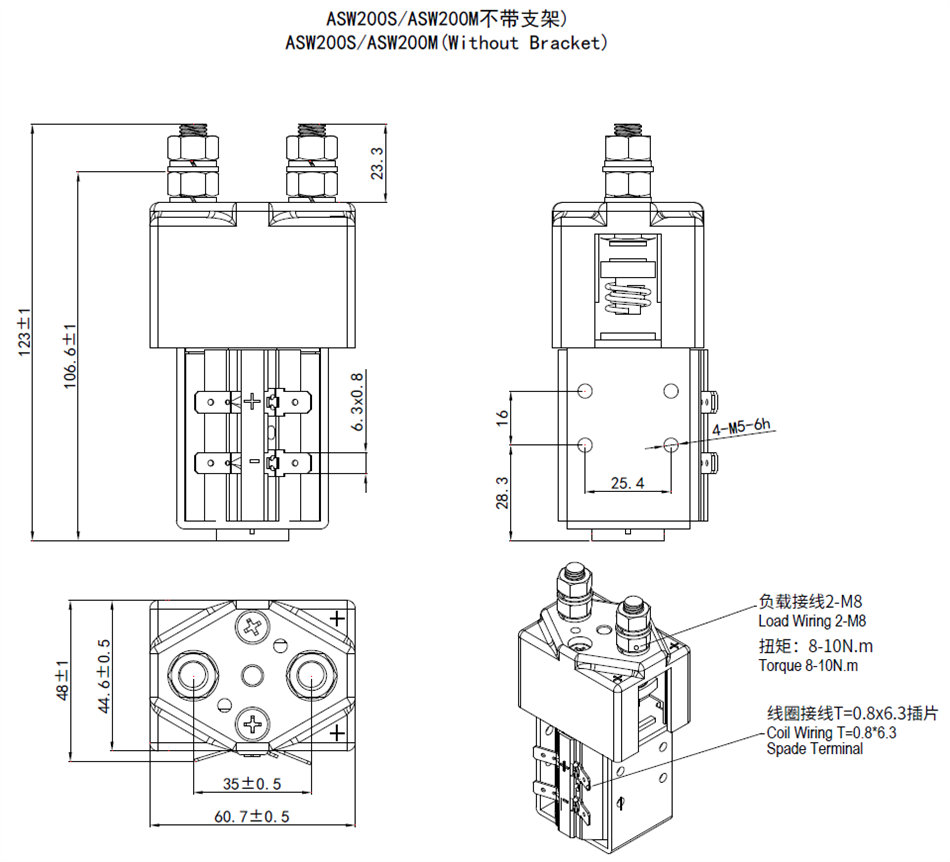

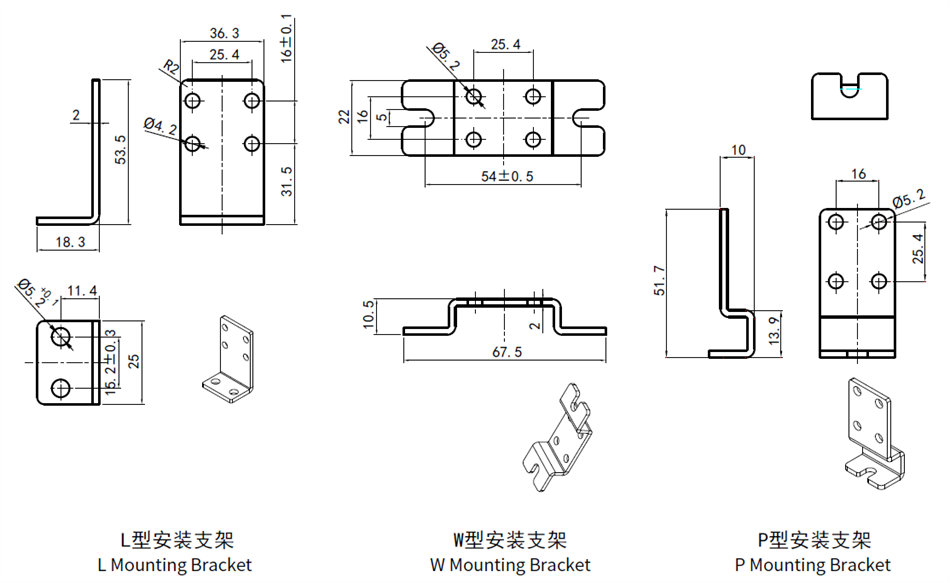

6. Outline Installation Dimension Drawing

ASW200 SPST NO DC Contactor for Electric Forklifts

ASW200 SPST NO DC Contactor for Electric Forklifts

ASW200 SPST NO DC Contactor for Electric Forklifts
