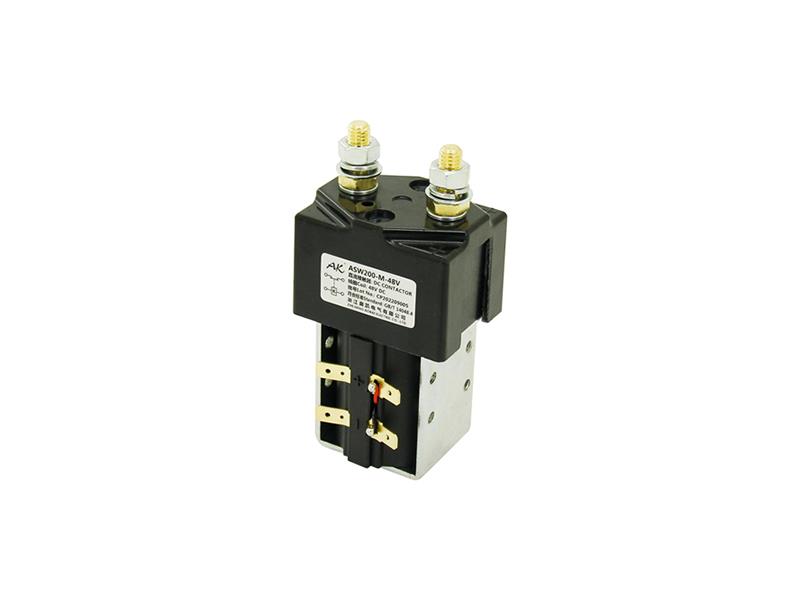

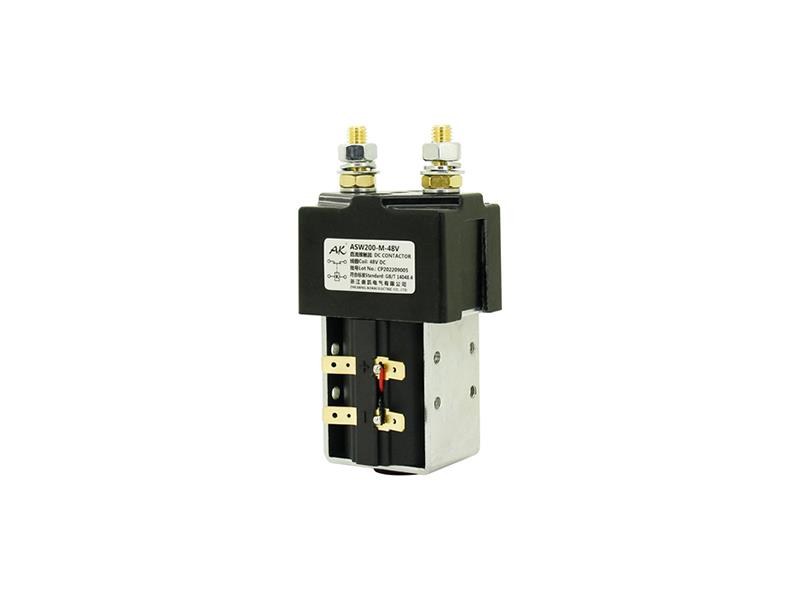

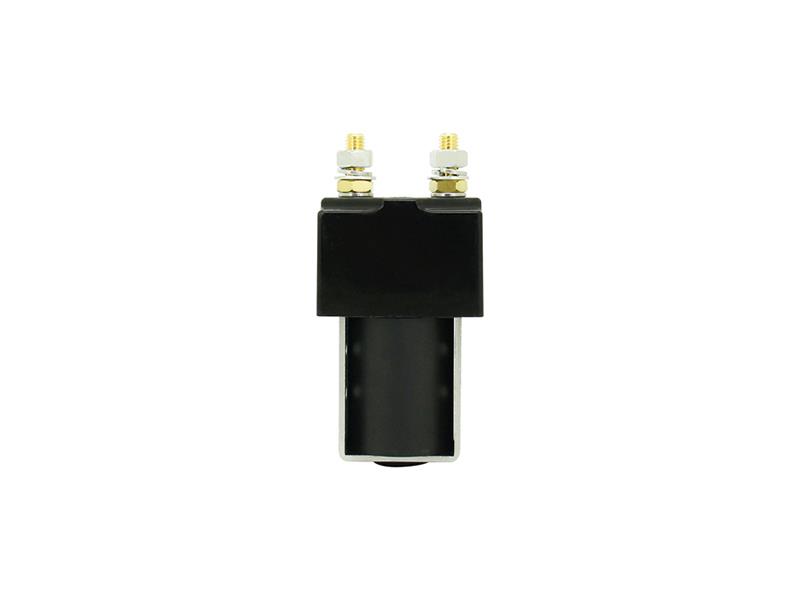

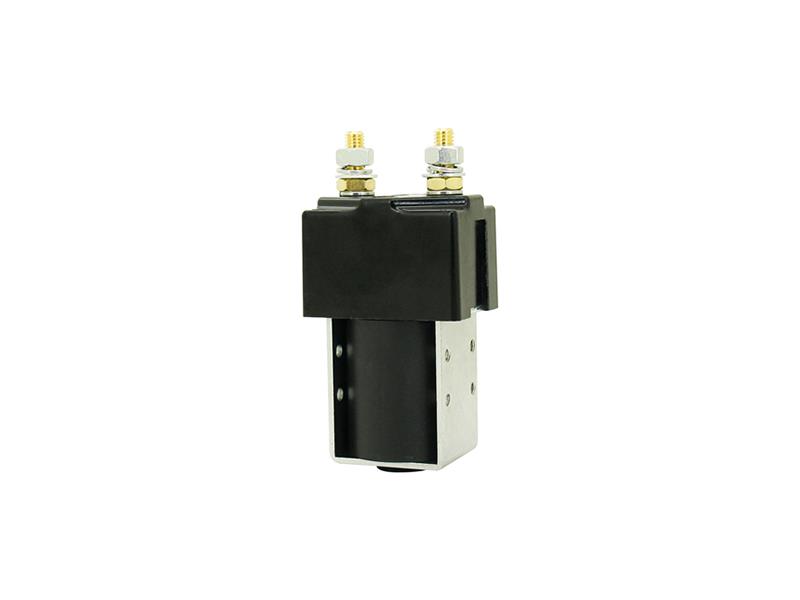

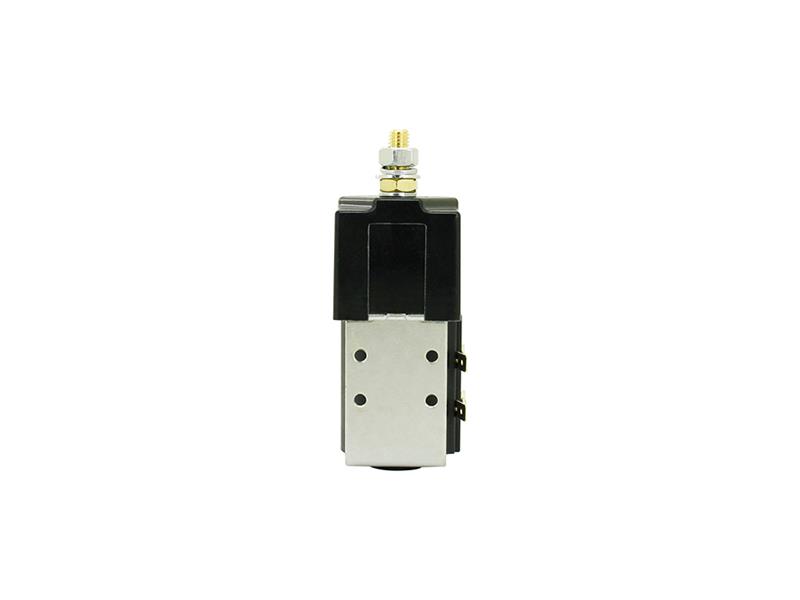

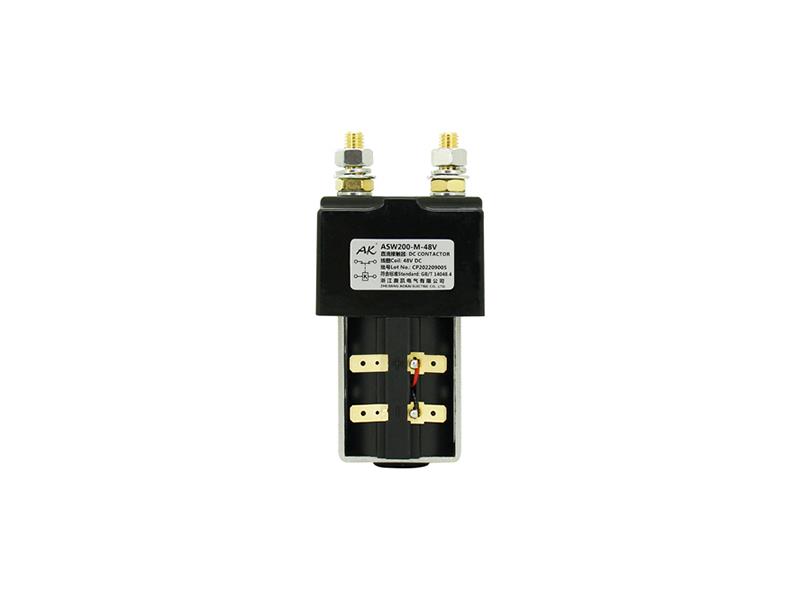

200A ASW200M SPST Bistable DC Latching Contactor for Communication Systems

Theory: Magnetic Latching Contactor
Usage: General Purpose
IP Protect Level: IP40
Rated Current: Continuous 200A
Contact Form: SPST Bistable
Size: 61mmx48mmx123mm
Mechanical Life: 100,000 Ops
Electric Life: 6,000 Ops
Quality Control: ISO9001, IATF16949
Brand & Logo: AK

1. Introduction
This series DC Contactor is used in electrical control systems, such as communication power supply equipment, frequency converters, engineering machinery, electromobiles, electric forklifts, automobiles, trains, ships, uninterruptible power supplies, etc.

2. Features
• Continuous 200A load.
• It has one set of SPST bistable contact.
• Coil power consumption ≤45W.
• The insulation resistance is up to 100MΩ (1,000VDC), the withstand voltage between the contact and the coil is 1kV.
• IP protection level: IP40.
• Compliant with IEC 60664-1, GB/T14048.1 and GB/T14048.4 requirements.
• Compliant with RoHS (2015/863/EU), REACH (1907/2006/EC) requirements.
• Safety certificate: CE.

3. Specification

Performance Parameters (at 23℃)

Contact Arrangement

SPST Bistable

Contact Resistance

≤0.5mΩ

Contact Voltage Drop

≤80mV (at 200A)

Overload Current

≤7le, ≯1s

Temperature Range

-25℃~60℃

Load Terminal

M8 External Thread

Humidity

20%~90%RH

External Dimension

61mmx48mmx123mm

Operating Duty

Continuous

Electrical Durability with Load (Resistive)

≥6,000 Times

Load Wiring Torque

8-10N.m

Pickup Voltage

20%~80% Us

Dropout Voltage

20%~80% Us

Pulse Width

0.5s~1s

Contact Bounce Period

≤5ms

Pickup Time

≤30ms

Dropout Time

≤30ms

Dielectric Strength

Between Main Contacts

50Hz/60Hz 1,000VAC/1min

Between Main Contacts and Coil

50Hz/60Hz 1,000VAC/1min

Insulation

Resistance

Initial State

100MΩ 1min

After Electrical Life

50MΩ 1min

Shock

(60-100) times/min, Acceleration≤4g

Vibration

3.5g, 10~200Hz, 1/2 Sine Wave (Power On)

Mechanical Durability

≥100,000 Times

Coil Wiring

0.8*6.3 Spade Terminal



ASW200M Coil Parameters

Coil Voltage

Pickup Voltage

Dropout Voltage

Holding Current

Coil Power Consumption

12V

20%-80%Us

20%-80%Us

≤1.20A

15W-45W

24V

20%-80%Us

20%-80%Us

≤0.70A

36V

20%-80%Us

20%-80%Us

≤0.65A

48V

20%-80%Us

20%-80%Us

≤0.70A

60V

20%-80%Us

20%-80%Us

≤0.60A

72V

20%-80%Us

20%-80%Us

≤0.50A

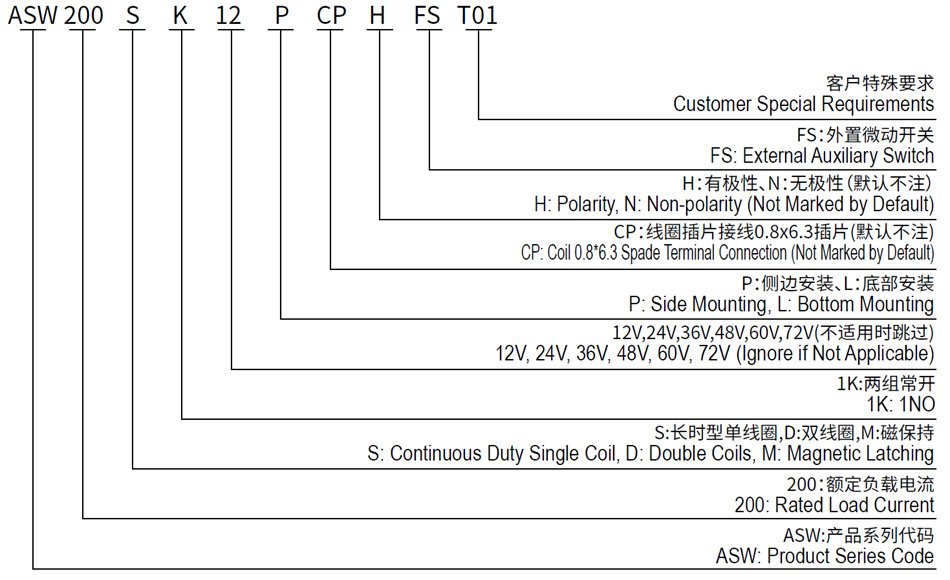

4. Model Coding

SPST Bistable DC Latching Contactor for Communication Systems

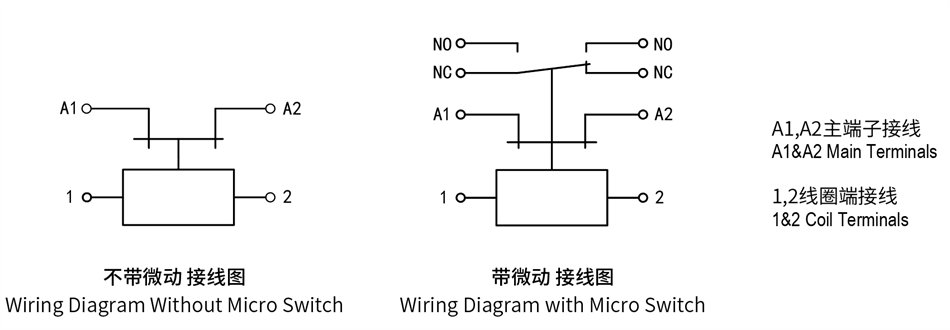

5. Wiring Diagram

SPST Bistable DC Latching Contactor for Communication Systems

Note: ASW200M coil is energized by positive and negative pulses, and the energizing time is 500ms≤t≤1s. The coil cannot be energized continuously for a long time, the operating frequency should not exceed 6 times per minute, and the pulse should be a square wave. Positive pulse (" " is connected to the positive of power supply, and "-" is connected to the negative of power supply) makes the contacts closed, and negative pulse (" " to the negative of power supply, "-" to the positive of power supply) makes the contacts open. After the coil is de-energized, the contact state is maintained by the permanent magnetic steel in the product.

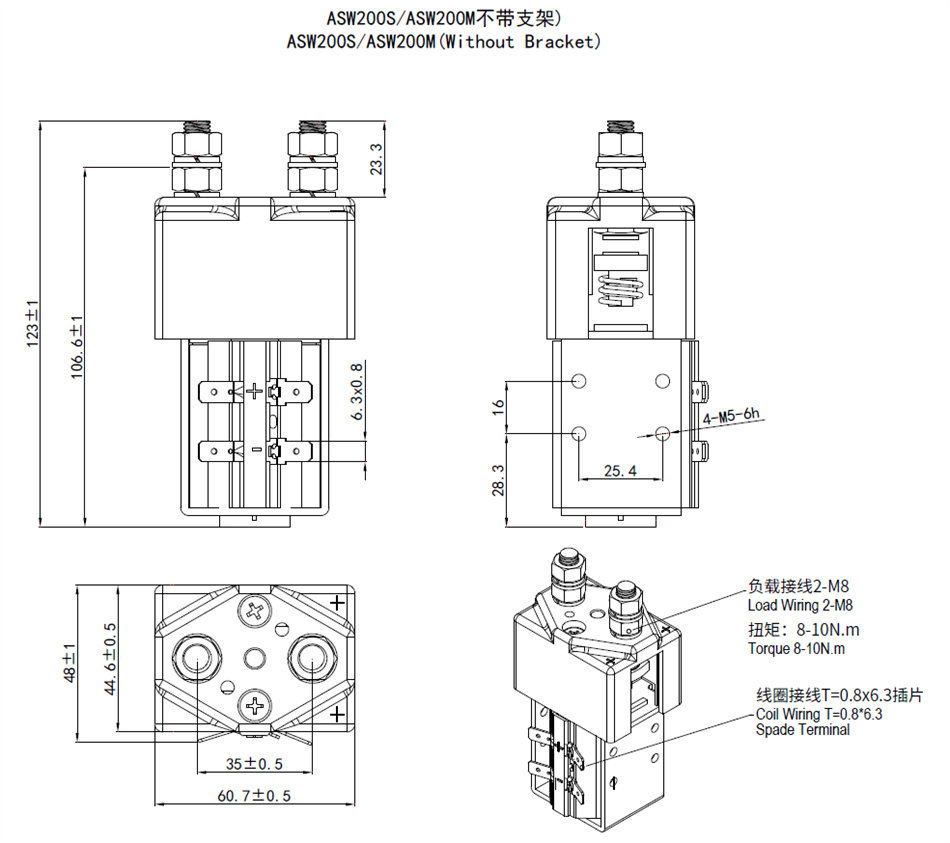

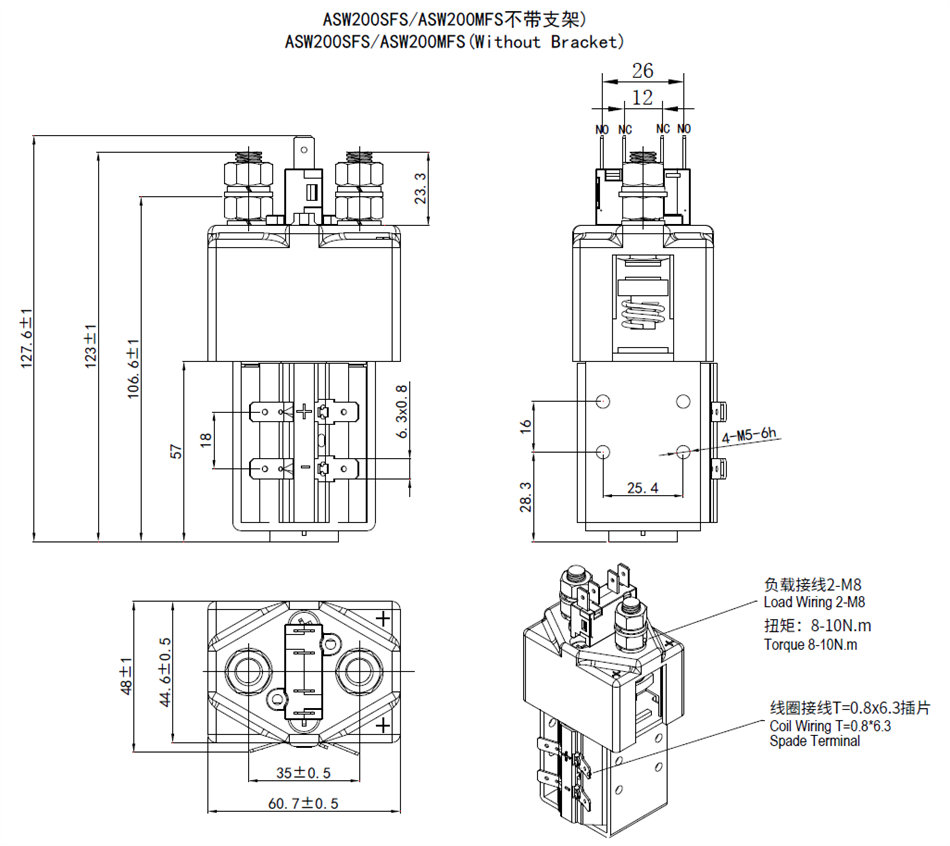

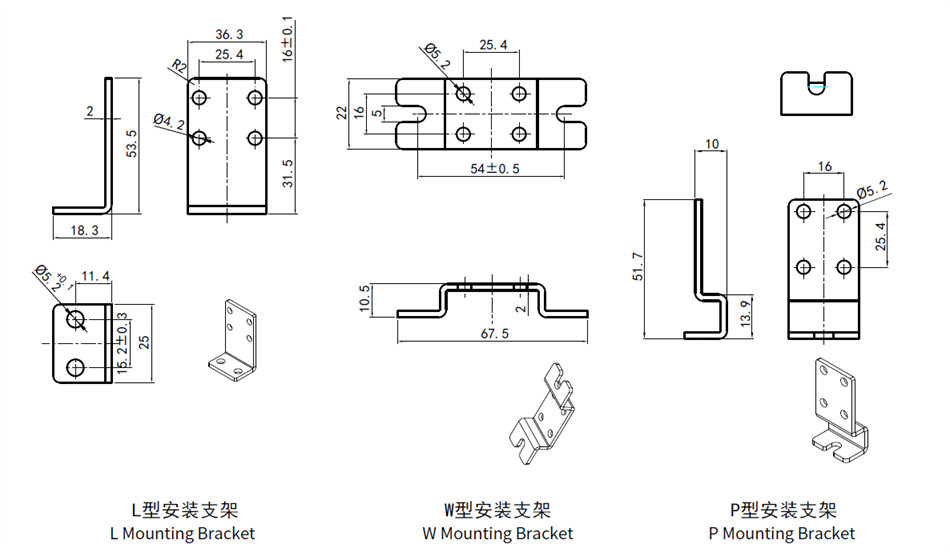

6. Outline Installation Dimension Drawing

SPST Bistable DC Latching Contactor for Communication Systems

SPST Bistable DC Latching Contactor for Communication Systems

SPST Bistable DC Latching Contactor for Communication Systems

Note: These datas are only for customer selection reference, AOKAI has tried the best to ensure the accuracy of the information. Product specifications and parameters may be changed due to product improvement etc., they may be inconsistent because of not updated in time. For the specific parameters and performance of each product, please refer to the samples provided by AOKAI and the corresponding signed and controlled specification.
