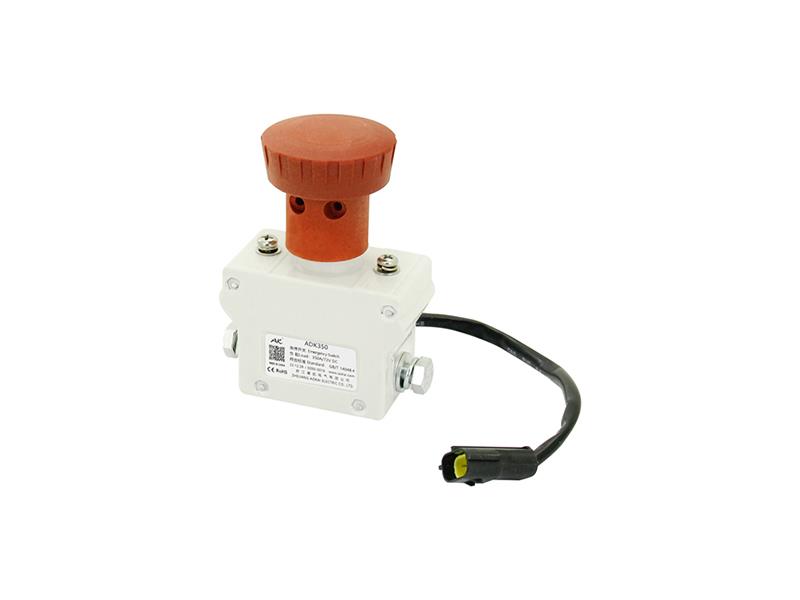

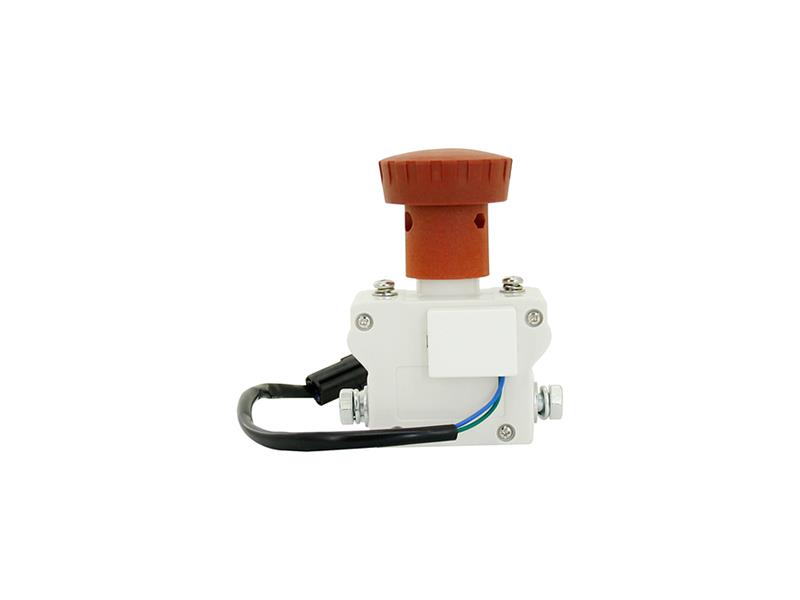

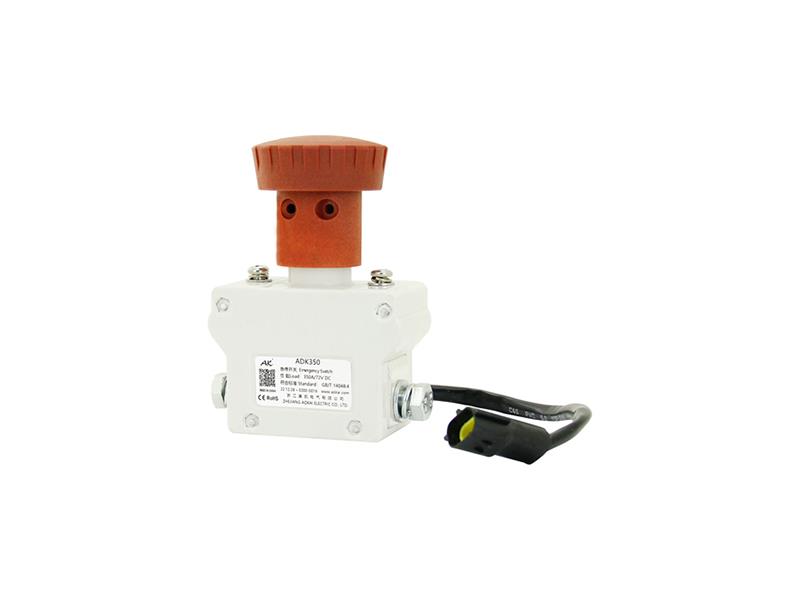

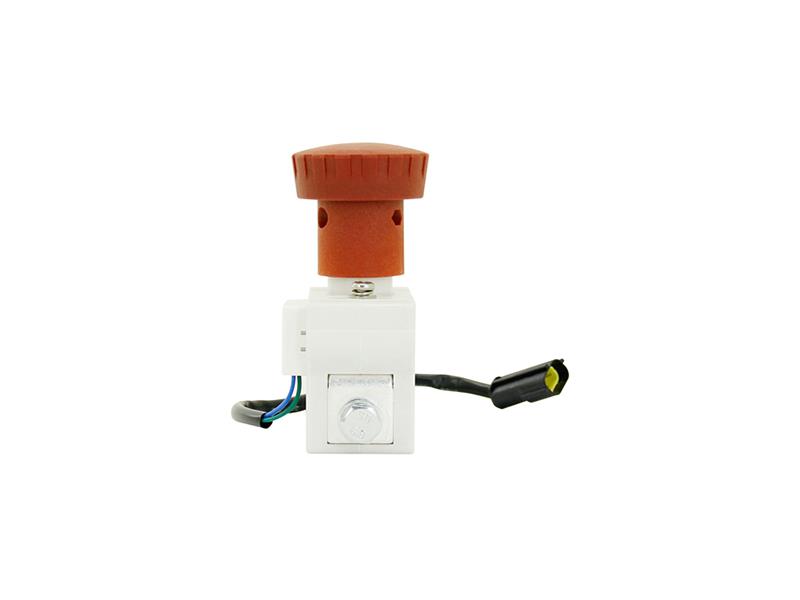

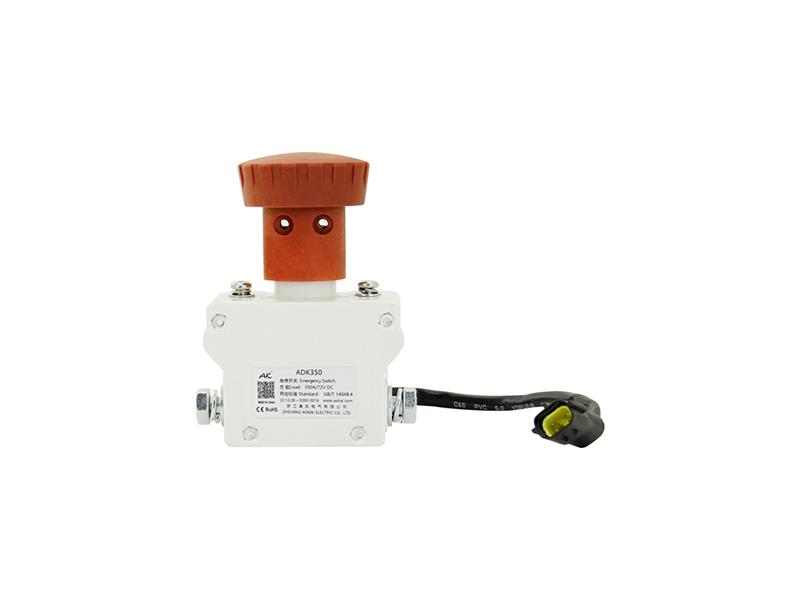

350A ADK350FS SPST NC Emergency Switch With Auxiliary Switch

Theory: Mechanical Switch
Usage: Emergency Stop
IP Protect Level: IP40
Rated Current: 350A
Contact Form: SPST-NC
Size: 75mmx38mmx123mm
Mechanical Life: 50,000 Ops
Electric Life: 6,000 Ops
Quality Control: ISO9001, IATF16949
Brand & Logo: AK

1. Introduction
This series Emergency Switch is used to connecting and emergency disconnecting of DC power supply systems of various vehicles and equipment, such as electric forklifts, electric vehicles, excavators, etc.

2. Features
• Continuous 350A load, contact rated voltage ≤72V.
• It has one set of normally closed contact.
• The insulation resistance reaches 100MΩ (500VDC), and the withstand voltage between the load contacts is 2.5kV.
• IP protection level: IP40.
• Compliant with IEC 60664-1, GB/T14048.1 and GB/T14048.4 requirements.
• Compliant with RoHS (2015/863/EU), REACH (1907/2006/EC) requirements.
• Safety certificate: CE.

3. Specification

Performance Parameters (at 23℃)

Contact Arrangement

1B (1NC)

Contact Resistance

≤0.5mΩ

Contact Voltage Drop

≤80mV (at 350A)

Overload Current

≤7le, ≯1s

Temperature Range

-40℃~85℃

Load Terminal

M8 Internal Thread

Humidity

5%~95%RH

External Dimension

75mmx38mmx123mm

Operating Duty

Continuous

Electrical Durability with Load (Resistive)

≥6,000 Times

Closing Pulling Force

30N≤F1≤50N

Disconnecting Pushing Force

30N≤F2≤50N

Normal Closing Time

≤100ms

Normal Disconnecting Time

≤50ms

Dielectric Strength Between Main Contacts

50Hz/60Hz 2,500VAC/1min

Insulation

Resistance

Initial State

100MΩ 1min



After Electrical Life

50MΩ 1min

Shock

Stability

20g (Power On)



Strength

50g

Vibration

2.5g, 5~50Hz, 1/2 Sine Wave (Power On)

Mechanical Durability

≥50,000 Times

Mounting Screw Torque M5

3-4N.m

Load Wiring Torque M8

8-10N.m

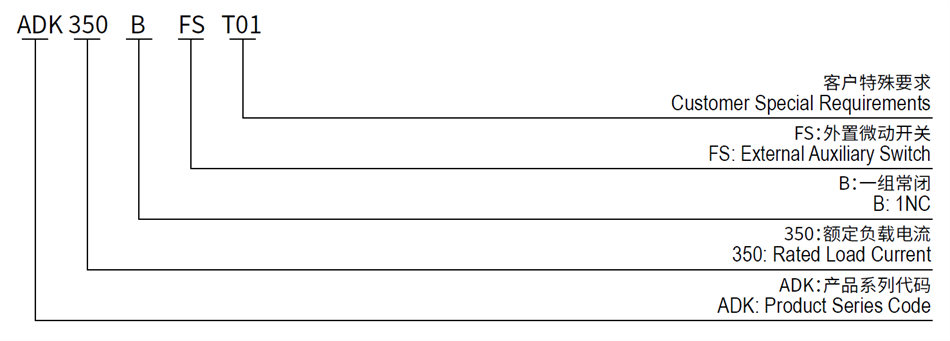

4. Model Coding

SPST NC Emergency Switch With Auxiliary Switch

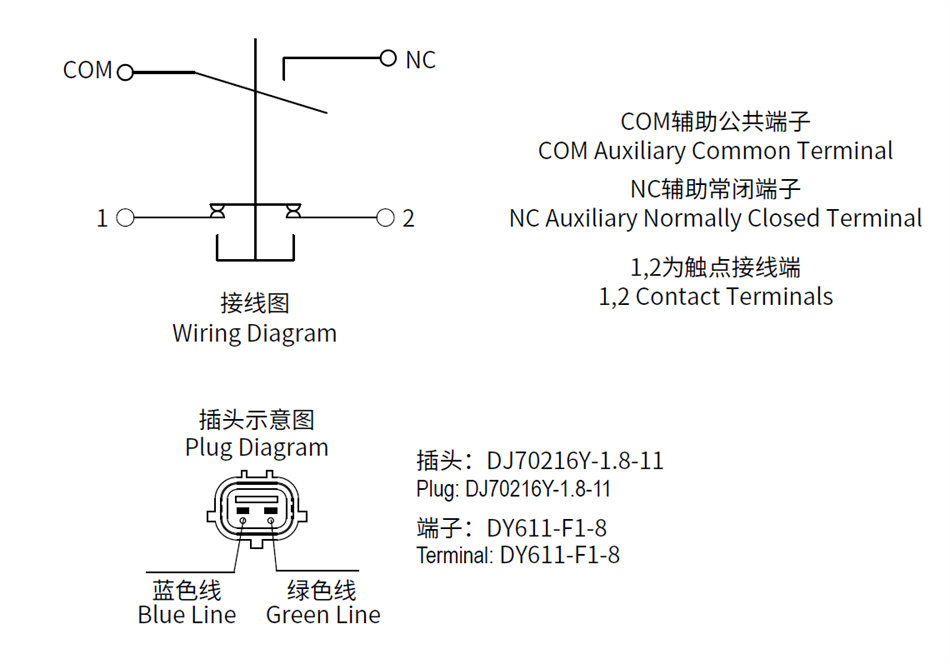

5. Wiring Diagram

SPST NC Emergency Switch With Auxiliary Switch

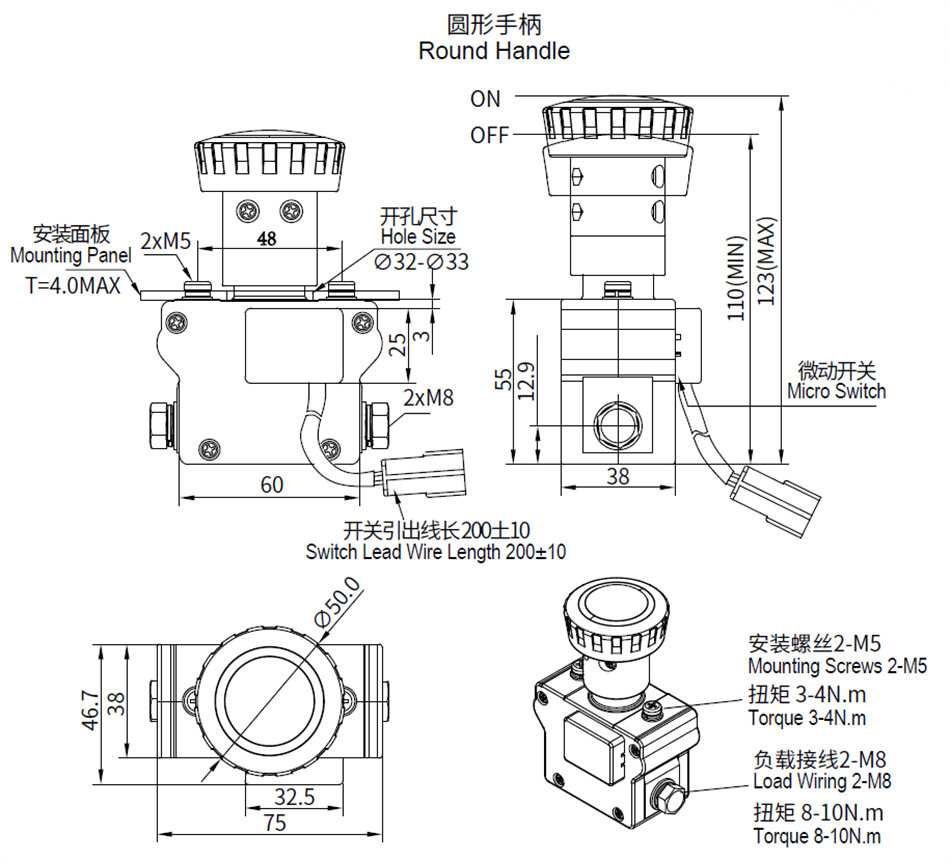

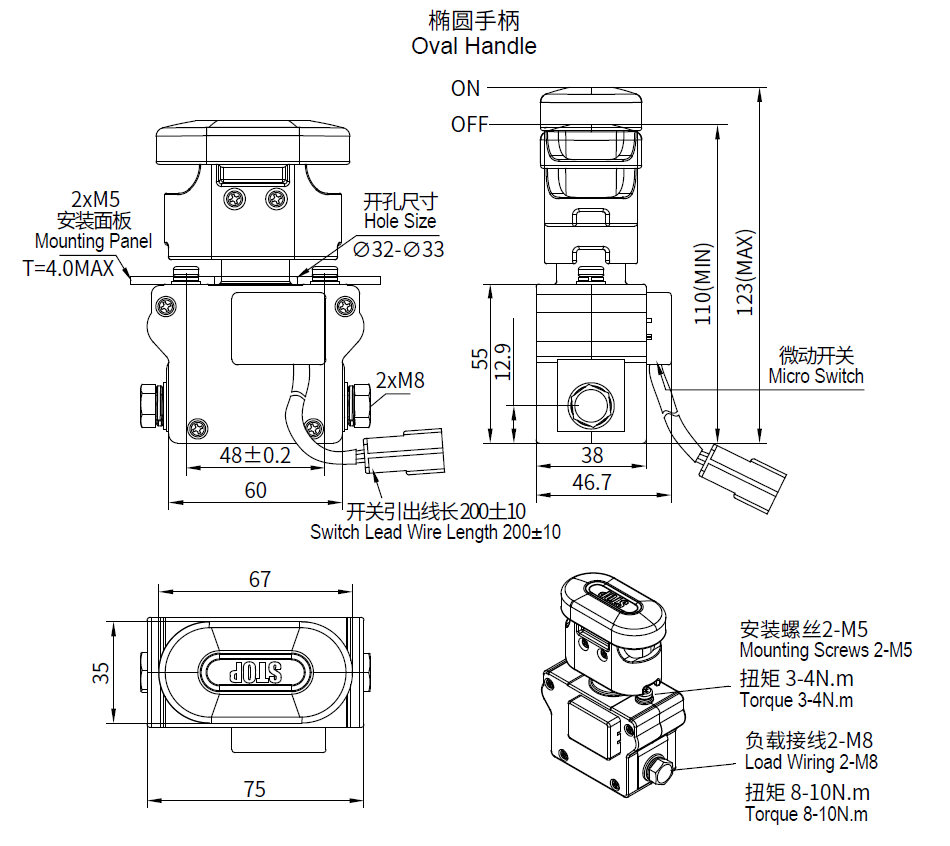

6. Outline Installation Dimension Drawing

SPST NC Emergency Switch With Auxiliary Switch

SPST NC Emergency Switch With Auxiliary Switch
