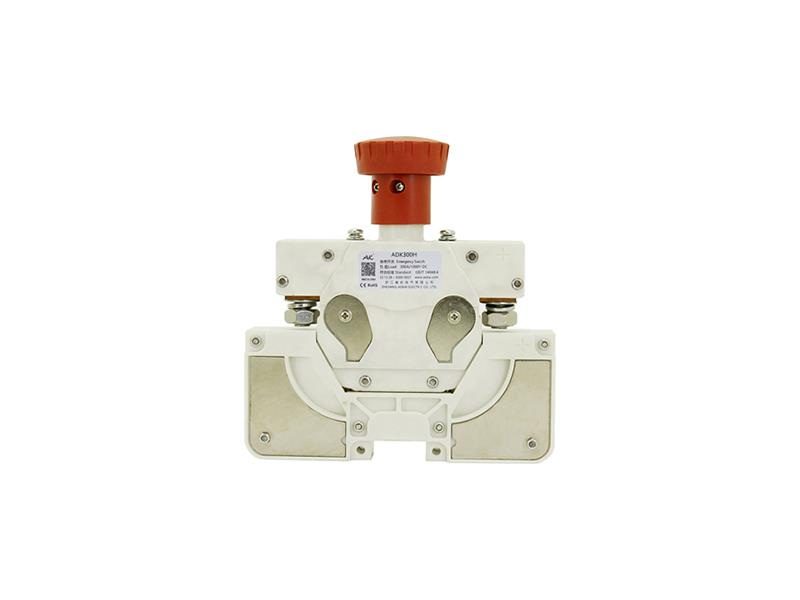

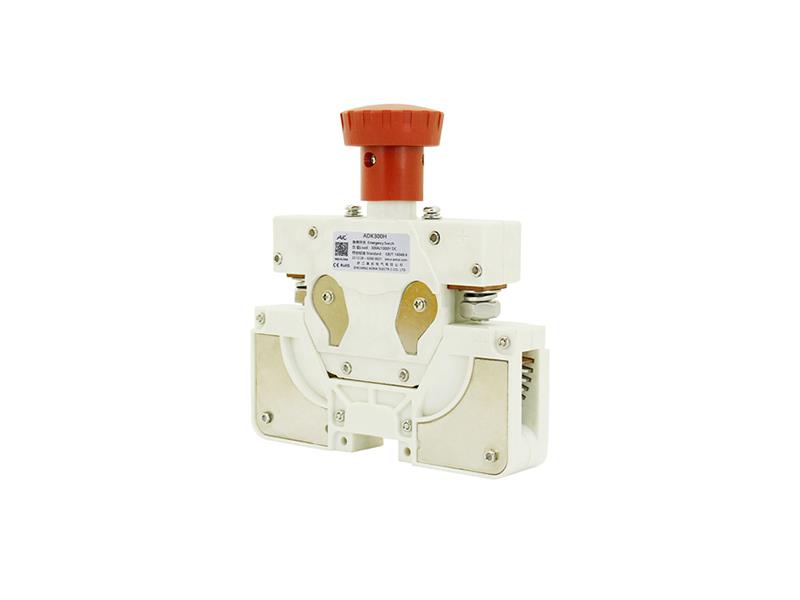

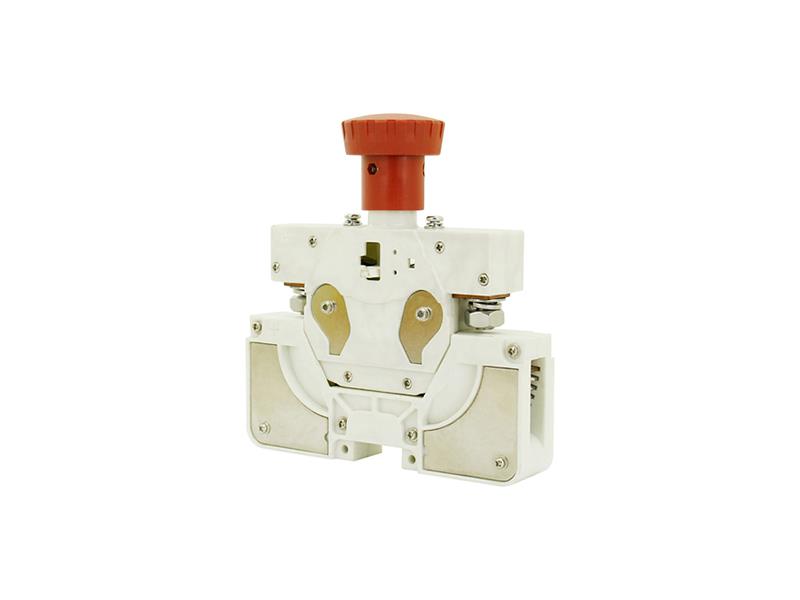

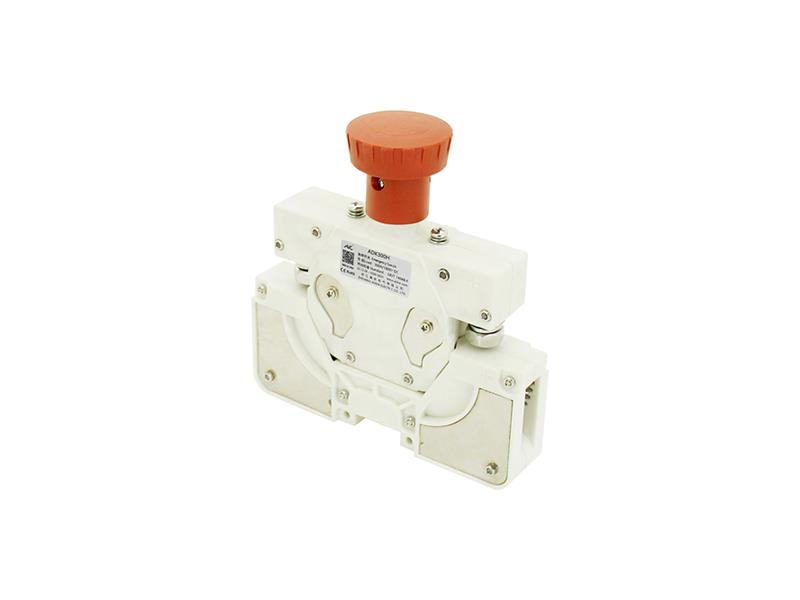

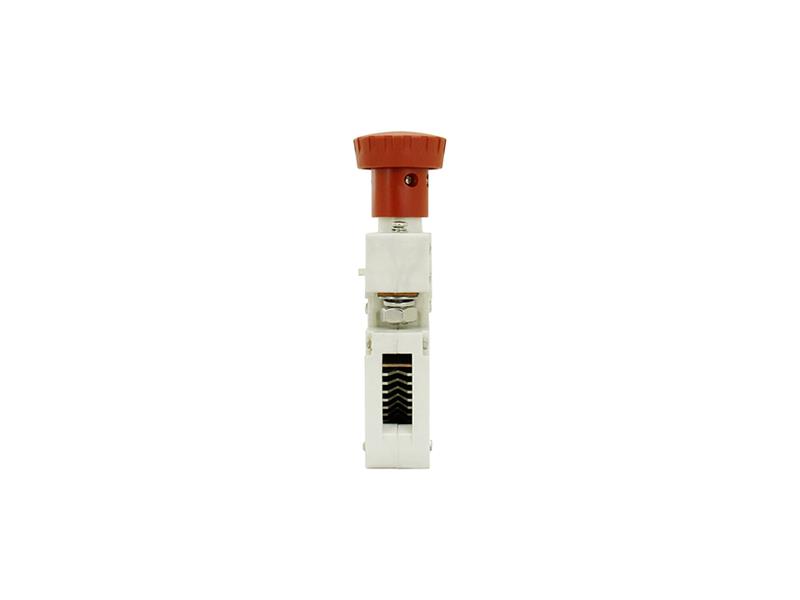

300A 1000V ADK300H SPST NC High Voltage Emergency Switch

Theory: Mechanical Switch
Usage: Emergency Stop
IP Protect Level: IP40
Rated Current: 300A
Contact Form: SPST-NC
Size: 60.5mmx34mmx183mm
Mechanical Life: 50,000 Ops
Electric Life: 6,000 Ops
Quality Control: ISO9001, IATF16949
Brand & Logo: AK

1. Introduction
This series Emergency Switch is used to connecting and emergency disconnecting of DC power supply systems of various vehicles and equipment, such as electric forklifts, electric vehicles, excavators, etc.

2. Features
• Continuous 300A load, contact rated voltage ≤1,000V.
• It has one set of normally closed contact.
• The insulation resistance reaches 100MΩ (500VDC), and the withstand voltage between the load contacts is 3kV.
• IP protection level: IP40.
• Compliant with IEC 60664-1, GB/T14048.1 and GB/T14048.4 requirements.
• Compliant with RoHS (2015/863/EU), REACH (1907/2006/EC) requirements.
• Safety certificate: CE.

3. Specification

Performance Parameters (at 23℃)

Contact Arrangement

1B (1NC)

Contact Resistance

≤0.5mΩ

Contact Voltage Drop

≤80mV (at 300A)

Overload Current

≤7le, ≯1s

Temperature Range

-40℃~85℃

Load Terminal

M8 Internal Thread

Humidity

5%~95%RH

External Dimension

60.5mmx34mmx183mm

Operating Duty

Continuous

Electrical Durability with Load (Resistive)

≥6,000 Times

Closing Pulling Force

30N≤F1≤50N

Disconnecting Pushing Force

30N≤F2≤50N

Normal Closing Time

≤100ms

Normal Disconnecting Time

≤50ms

Dielectric Strength Between Main Contacts

50Hz/60Hz 3,000VAC/1min

Insulation

Resistance

Initial State

100MΩ 1min



After Electrical Life

50MΩ 1min

Shock

Stability

20g (Power On)



Strength

50g

Vibration

2.5g, 5~50Hz, 1/2 Sine Wave (Power On)

Mechanical Durability

≥50,000 Times

Mounting Screw Torque M5

3-4N.m

Load Wiring Torque M10

10-14N.m

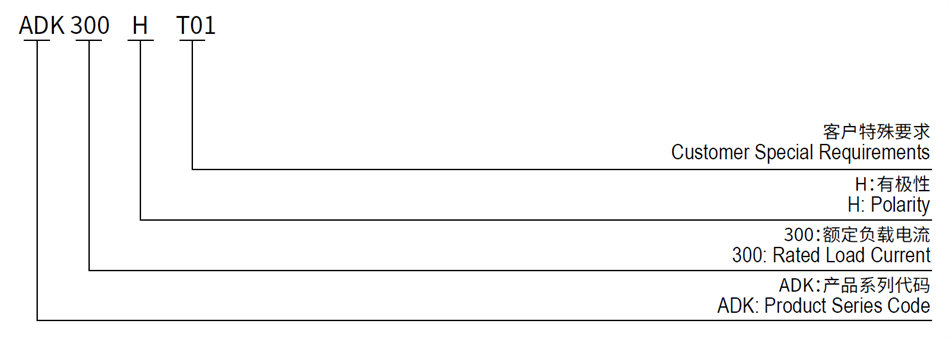

4. Model Coding

ADK300H SPST NC High Voltage Emergency Switch

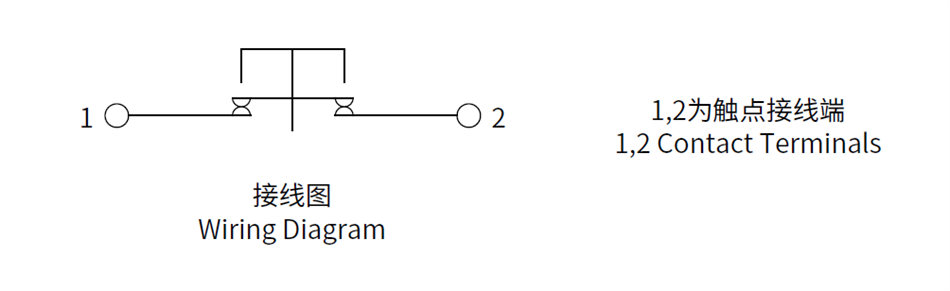

5. Wiring Diagram

ADK300H SPST NC High Voltage Emergency Switch

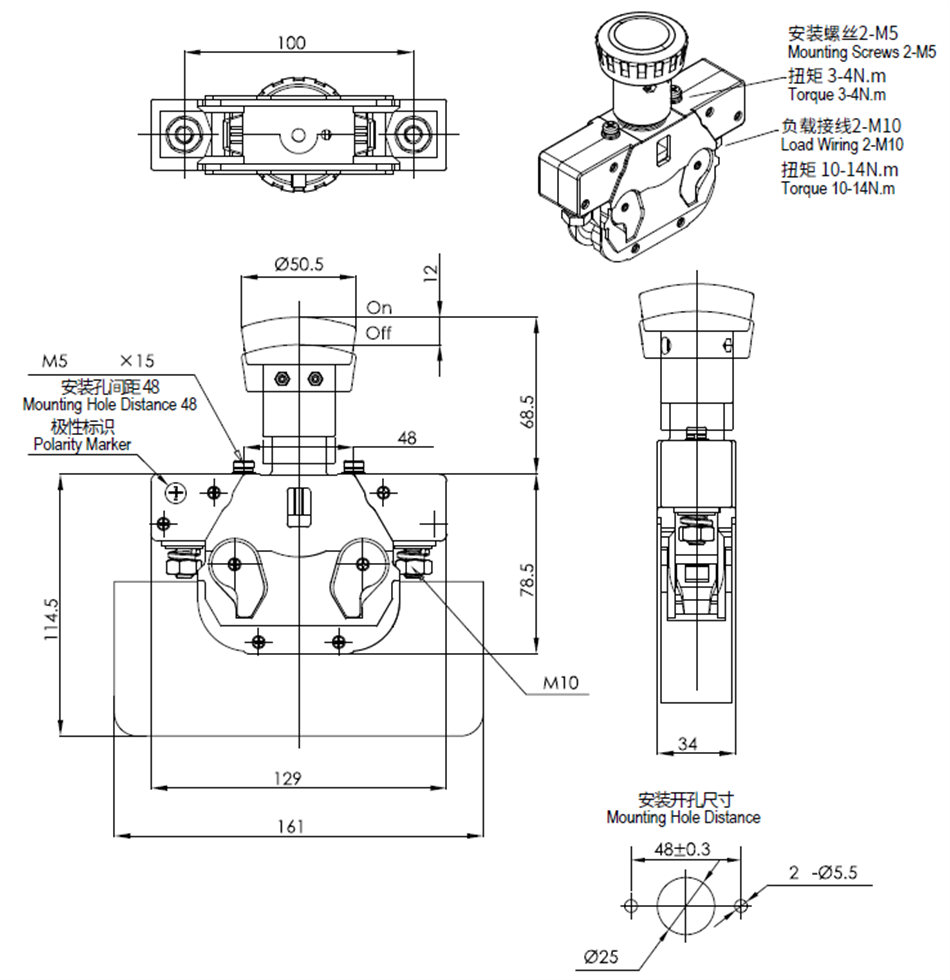

6. Outline Installation Dimension Drawing

ADK300H SPST NC High Voltage Emergency Switch
